Fill-Rite 807CN1 3-Wheel Mechanical, 1 in Meter

Model/SKU: 807CN1
Manufacturer Part # 807CN1

Description

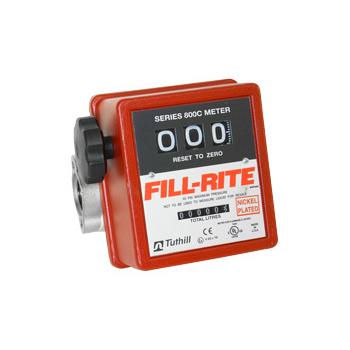

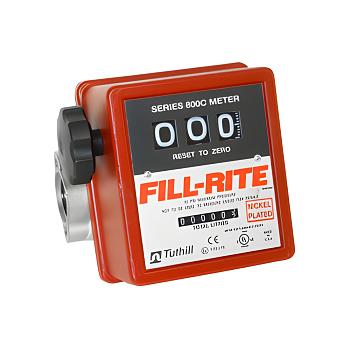

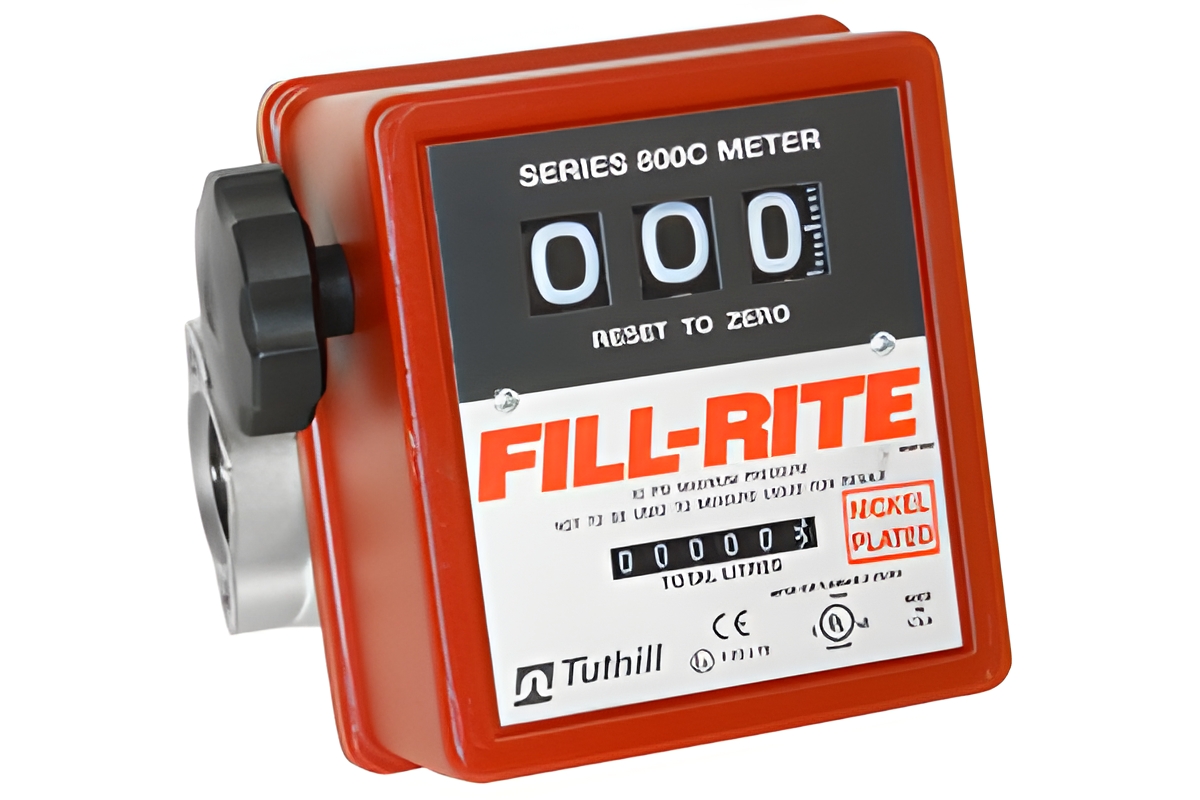

The Fill-Rite 807CN1 is a nickel-plated, 1 inch 3-digit mechanical meter that reads in gallons at 5 to 20 GPM. The nickel finish makes it suitable for a wider range of fluids, including high-ethanol and high-biodiesel blends and non-potable water.

Nutating disc metering measures within plus or minus 1% accuracy with 0.38% repeatability and can pass small rust and debris particles that jam other meter designs. The 3-digit batch counter registers up to 99.9 gallons per fill and resets with a knob, while a 5-digit non-resettable totalizer keeps a lifetime record. The nickel-plated cast-aluminum housing is rated to 50 PSI, the flow ports can be set in any of four positions for horizontal or vertical piping, and the meter is factory calibrated and can be field calibrated with an adjustment screw. It carries CE, cULus, and ATEX certifications and a 2-year warranty. Not for fluid resale.

Key Specs
  • Model: 807CN1
  • Type: 3-digit mechanical nutating disc meter (gallons)
  • Flow range: 5-20 GPM
  • Accuracy / repeatability: Plus or minus 1% / 0.38%
  • Inlet / outlet: 1" female NPT / 1" female NPT
  • Counters: 3-digit resettable batch counter (up to 99.9 gallons); 5-digit non-resettable totalizer
  • Max operating pressure: 50 PSI
  • Operating temperature: -15 to 150 degrees F (-26 to 66 degrees C)
  • Compatible fluids: Diesel, gasoline up to E85, kerosene, biodiesel up to B100, mineral spirits, heptane, hexane, and non-potable water
  • Materials: Nickel-plated cast aluminum housing; fluorocarbon seals
  • Included: Meter and reset knob
  • Assembled weight: 4 lbs
  • Certifications: CE, cULus, ATEX
  • Warranty: 2 years
Common Uses

Tracking E85, biodiesel blends up to B100, diesel, gasoline, or non-potable water on 1 inch transfer pumps at farms, fleets, and industrial sites. Not for retail fuel sales, potable water, or aircraft fueling.
