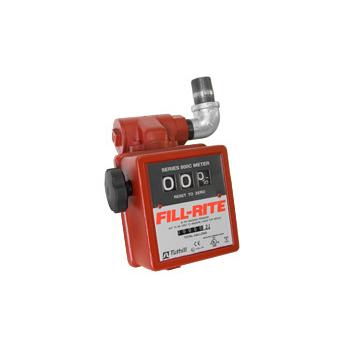

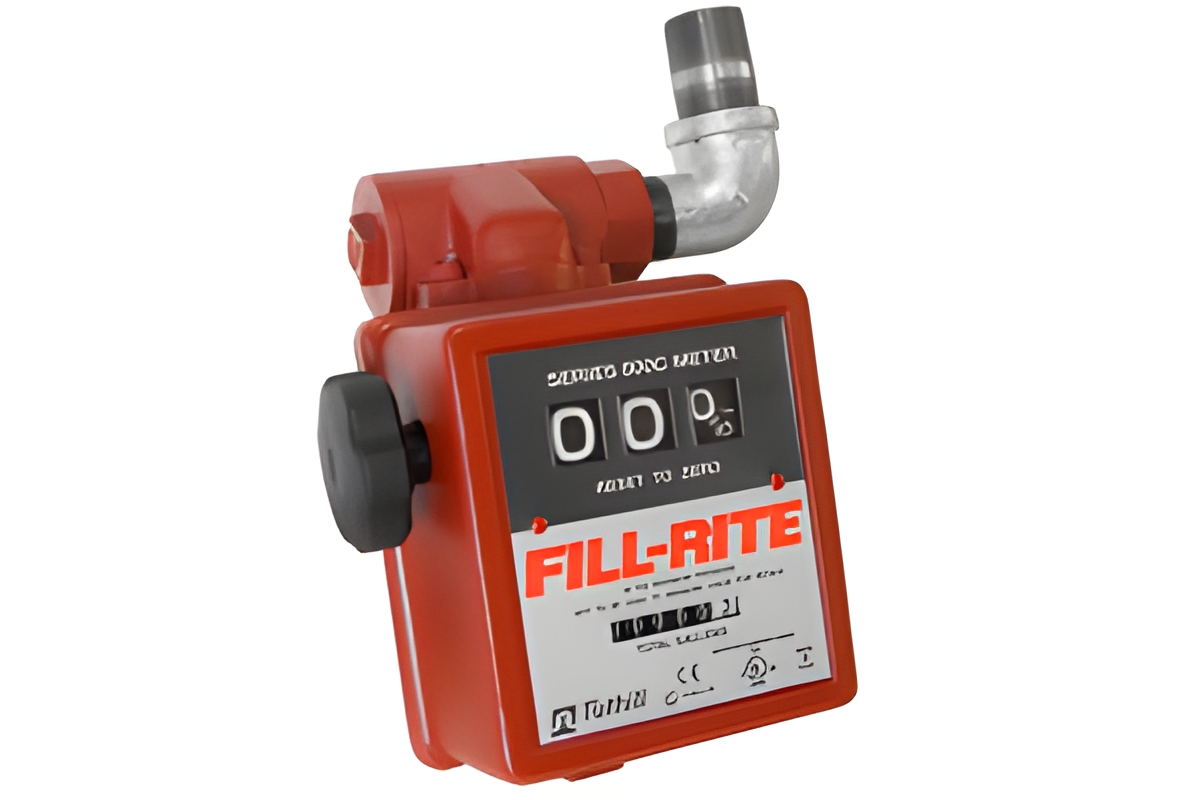

Fill-Rite 806C 3-Wheel Mechanical, 1 in Gravity Meter with Strainer 1
Fill-Rite
Lead Time:  5-14 Days
Ships From: IN

Quantity

See Our Reviews!
Customer Reviews

Share this page!
Twitter

Fill-Rite 806C 3-Wheel Mechanical, 1 in Gravity Meter with Strainer

Model/SKU: 806C
Manufacturer Part # 806C

Description

The Fill-Rite 806C is a 1 inch 3-digit mechanical meter that reads in gallons, built for gravity-fed fuel systems such as overhead and elevated tanks flowing 5 to 20 GPM. It includes a built-in strainer to help keep debris out of the measuring chamber.

Nutating disc metering measures within plus or minus 1% accuracy with 0.38% repeatability and can pass small rust and debris particles that jam other meter designs. The 3-digit batch counter registers up to 99.9 gallons per fill and resets with a knob, while a 5-digit non-resettable totalizer keeps a lifetime record. The cast-aluminum housing is rated to 50 PSI, the flow ports can be set in any of four positions for horizontal or vertical piping, and the meter is factory calibrated and can be field calibrated with an adjustment screw. It carries CE, cULus, and ATEX certifications and a 2-year warranty. Not for fluid resale.

Key Specs
  • Model: 806C
  • Type: 3-digit mechanical nutating disc meter (gallons), gravity flow with strainer
  • Flow range: 5-20 GPM
  • Accuracy / repeatability: Plus or minus 1% / 0.38%
  • Inlet / outlet: 1" female NPT / 1" female NPT
  • Counters: 3-digit resettable batch counter (up to 99.9 gallons); 5-digit non-resettable totalizer
  • Max operating pressure: 50 PSI
  • Operating temperature: -15 to 150 degrees F (-26 to 66 degrees C)
  • Compatible fluids: Diesel, gasoline up to E15, kerosene, biodiesel up to B20, mineral spirits, heptane, and hexane
  • Materials: Cast aluminum housing; fluorocarbon seals
  • Included: Meter, reset knob, and 1" NPT street elbow
  • Assembled weight: 5.2 lbs
  • Certifications: CE, cULus, ATEX
  • Warranty: 2 years
Common Uses

Metering fuel by gallon from gravity-fed overhead or elevated farm and job site tanks into tractors, mowers, generators, and other smaller equipment, for in-house record keeping. Not for retail fuel sales or aircraft fueling.
