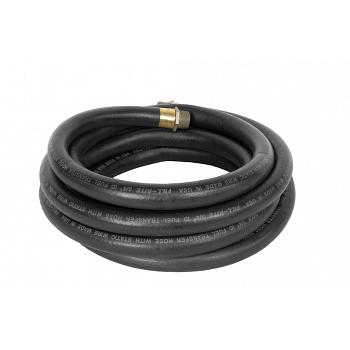

Fill-Rite FRH07520 3/4" x 20' (6 m) Fuel Transfer Hose

Model/SKU: FRH07520
Manufacturer Part # FRH07520

Description

The Fill-Rite FRH07520 is a 3/4" by 20 foot (6 m) fuel transfer discharge hose with male NPT ends. It is made to connect a Fill-Rite or similar fuel pump to a nozzle on tanks, trucks, and fueling stations.

A nitrile inner tube stands up to everyday fuel service, and a rugged neoprene cover resists abrasion, weather, and outdoor wear. A stainless steel ground wire runs the full length of the hose to help control static buildup, and a 7 inch internal spring guard at the end reduces kinking so fuel keeps flowing. It is rated to 50 PSI (3.4 bar) and from -40 degrees F to 180 degrees F (-40 degrees C to 82 degrees C), and it carries a 1-year warranty. Manufactured in the USA.

Key Specs
  • Model: FRH07520
  • Size: 3/4" ID x 20' (6 m); 1.1" OD
  • Ends: 3/4" male NPT both ends
  • Construction: Nitrile inner tube, neoprene cover, 7" anti-kink spring guard, full-length stainless steel ground wire
  • Max working pressure: 50 PSI / 3.4 bar
  • Operating temperature: -40 degrees F to 180 degrees F (-40 degrees C to 82 degrees C)
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, ethanol blends up to E15, and light oils
  • Assembled weight: 8 lbs
  • Warranty: 1 year
Common Uses

Replacing or extending the discharge hose on 3/4" fuel transfer pumps used with diesel, gasoline, kerosene, biodiesel up to B20, E15, or light oils on farm tanks, fleet tanks, and construction fueling setups.
