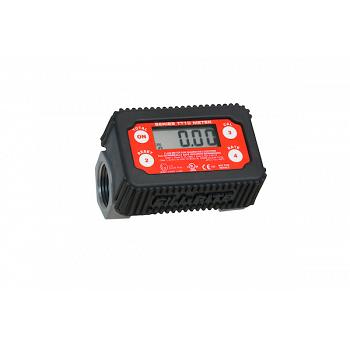

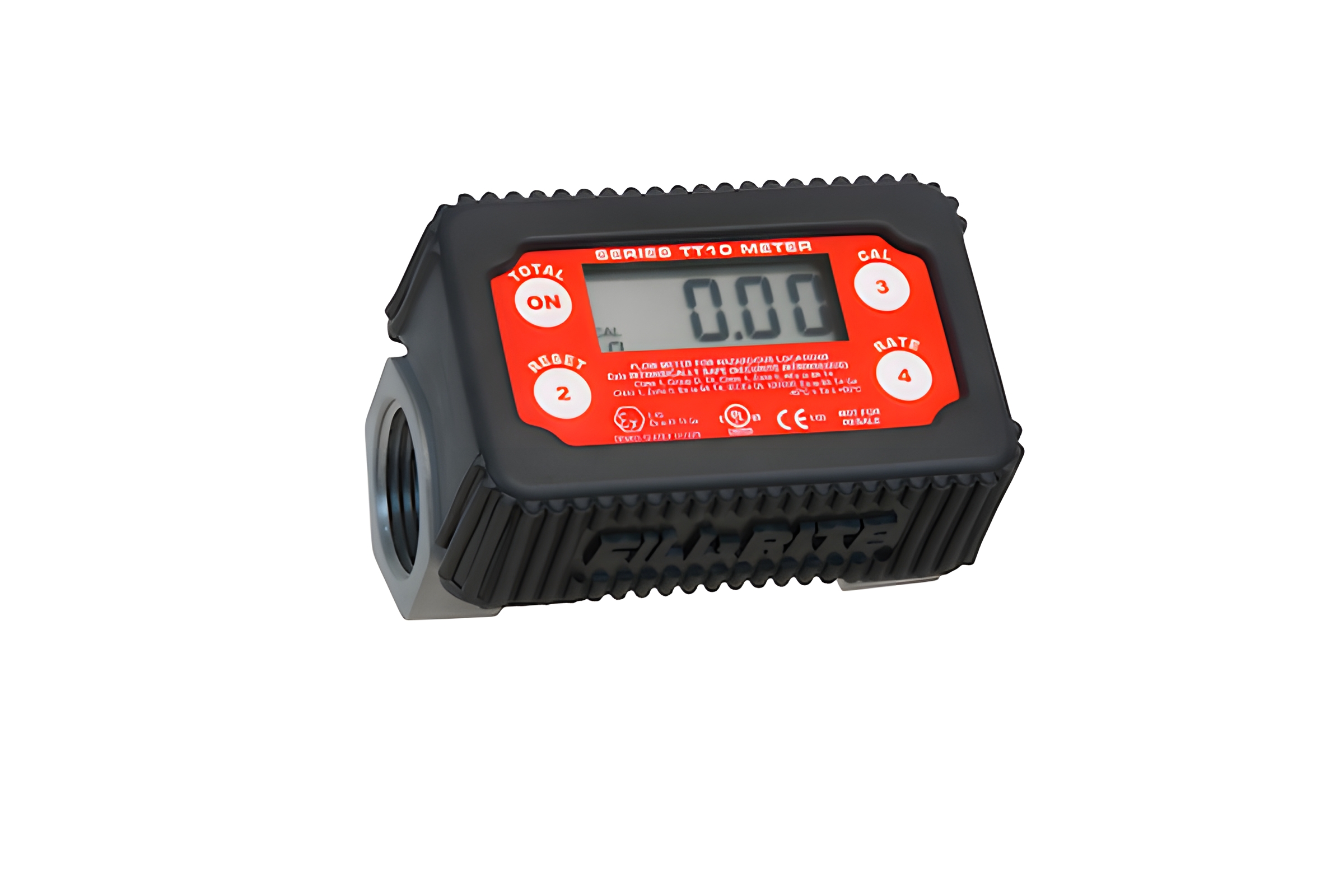

Fill-Rite TT10ABC In-Line Digital Turbine Meter

Model/SKU: TT10ABC
Manufacturer Part # TT10ABC

Description

The Fill-Rite TT10ABC is a compact 1 inch in-line digital turbine meter with a nickel-plated aluminum body and BSPP threads, made to measure fuels, E85, and non-potable water from 2 to 35 GPM (8 to 132 LPM). It can be installed right at the pump or at the end of the discharge hose near the nozzle.

After field calibration it measures within plus or minus 1% with 0.30% repeatability, and 20 preset calibration factors make setup quick for common fluids. The 4-digit LCD rotates 180 degrees and reads in ounces, pints, quarts, liters, gallons, or a custom unit, while a non-resettable totalizer keeps its count even when the batteries are changed. An external rubber boot protects the meter from impacts, and it runs on 2 AA alkaline batteries (included). The meter is intrinsically safe for hazardous locations and carries CE, cULus, ATEX, and IECEx approvals with a 2-year warranty. Not for fluid resale.

Key Specs
  • Model: TT10ABC
  • Type: Battery-powered in-line digital turbine meter, 4-digit LCD, no pulse output
  • Flow range: 2-35 GPM / 8-132 LPM
  • Accuracy / repeatability: Plus or minus 1% (after field calibration) / 0.30%
  • Inlet / outlet: 1" female BSPP / 1" female BSPP
  • Housing: Nickel-plated aluminum with protective rubber boot
  • Max operating pressure: 50 PSI
  • Operating temperature: -40 to 140 degrees F (-40 to 60 degrees C)
  • Compatible fluids: Diesel, gasoline, E85, kerosene, mineral spirits, heptane, hexane, and non-potable water
  • Units: Ounces, pints, quarts, liters, gallons, or user-defined
  • Power: 2 AA alkaline batteries (included)
  • Included: Meter and 2 AA batteries
  • Shipping weight: 1.3 lbs
  • Certifications: CE, cULus, ATEX, IECEx
  • Warranty: 2 years
Common Uses

Adding a compact digital meter to 1 inch BSPP fuel transfer pumps on farm, fleet, and job site tanks, including E85 and non-potable water systems. Not for retail fuel sales.



Detailed Information

PDF  Fill-Rite TT10ABC Installation & Operation Manual
