Fill-Rite 900CDPBSPT Digital Meter with 1 in Inlet and Outlet

Model/SKU: 900CDPBSPT
Manufacturer Part # 900CDPBSPT

Description

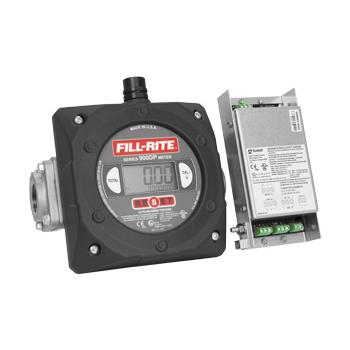

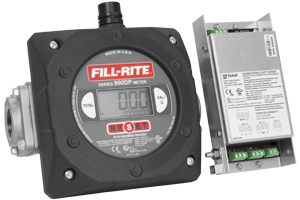

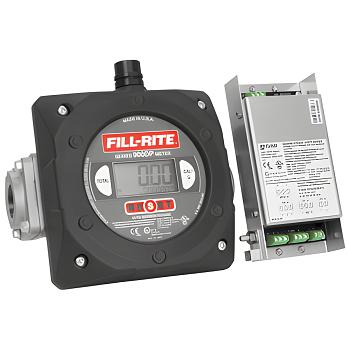

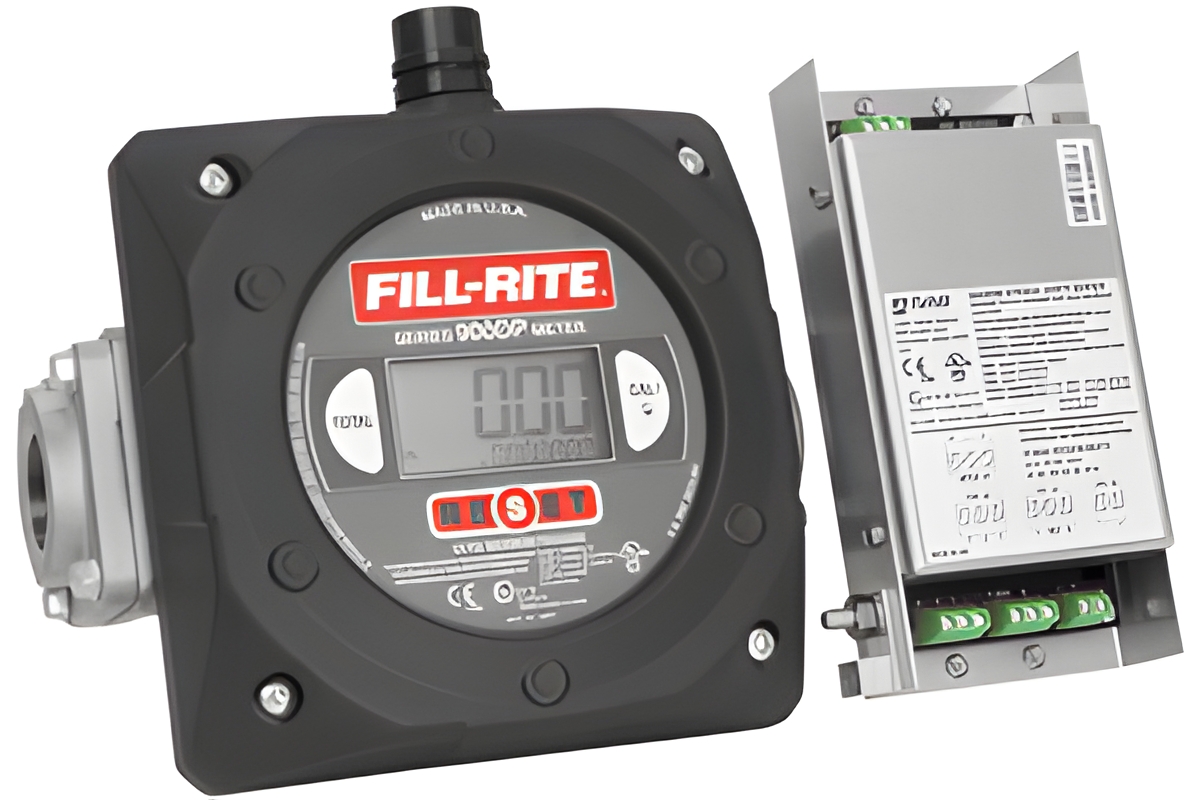

The Fill-Rite 900CDPBSPT is a 1 inch digital fuel transfer meter with pulse output and BSPT threads, measuring 6 to 40 GPM (23 to 151 LPM). It is built for fueling sites that send dispensing data to a fuel management system or other controller, and it includes an intrinsic safety barrier for the pulser connection.

A nutating disc measuring element delivers plus or minus 1.25% accuracy with 0.25% repeatability and can pass small rust and debris particles that jam other meter types. The 4-digit LCD counts up to 999.9 gallons or liters per batch in gallons, liters, quarts, pints, ounces, or a custom unit, and a 7-digit non-resettable totalizer keeps a lifetime record. The cast-aluminum body has a thick nickel-plated finish for corrosion resistance, the meter comes factory calibrated for common fuels, and it runs on 2 AA batteries (included). It carries ATEX, cULus, and CE certifications and a 2-year warranty. Not for fluid resale.

Key Specs
  • Model: 900CDPBSPT
  • Type: 4-digit digital nutating disc meter with pulse output and intrinsic safety barrier
  • Flow range: 6-40 GPM / 23-151 LPM
  • Accuracy / repeatability: Plus or minus 1.25% / plus or minus 0.25%
  • Inlet / outlet: 1" female BSPT / 1" female BSPT
  • Pulse rate: 10 or 100 pulses per gallon; 10 or 125 pulses per liter
  • Display: 4-digit LCD batch display (up to 999.9); 7-digit non-resettable totalizer
  • Units: Gallons, liters, quarts, pints, ounces, or user-defined
  • Max operating pressure: 50 PSI
  • Operating temperature: -40 to 140 degrees F (-40 to 60 degrees C)
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, mineral spirits, heptane, and hexane
  • Housing: Nickel-plated cast aluminum; fluorocarbon seals
  • Power: 2 AA alkaline batteries (included)
  • Included: Meter, intrinsic safety barrier, and 2 AA batteries
  • Shipping weight: 9.5 lbs
  • Certifications: ATEX, cULus, CE
  • Warranty: 2 years
Common Uses

Connecting 1 inch fuel transfer pumps and fueling stations to a fuel management or tracking system on fleets, farms, and construction sites, especially where BSPT pipe threads are standard. Not for retail fuel sales.
