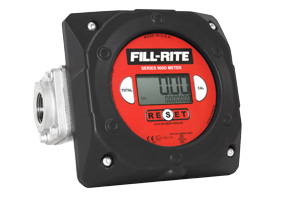

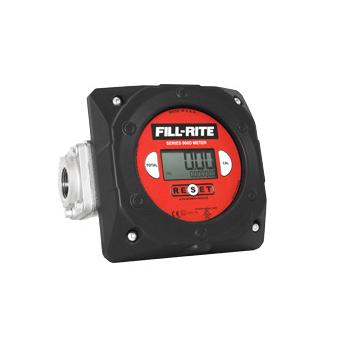

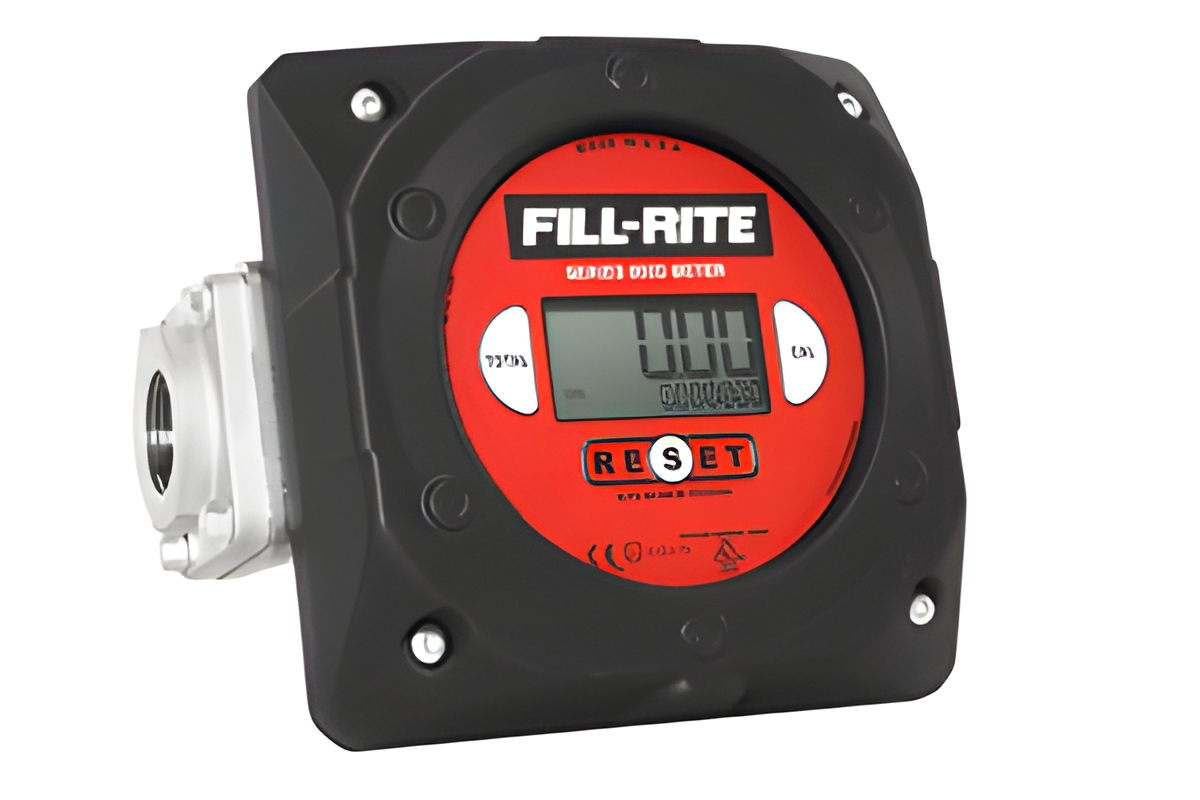

Fill-Rite 900CD1.5 Digital Meter, 1.5 in inlet and outlet

Model/SKU: 900CD1.5
Manufacturer Part # 900CD1.5

Description

The Fill-Rite 900CD1.5 is a battery-powered digital fuel transfer meter with 1.5 inch NPT inlet and outlet threads, built to measure flow rates from 6 to 40 GPM (23 to 151 LPM). It is a meter only, for adding accurate dispensing records to a fuel pump or tank system.

A nutating disc measuring element delivers plus or minus 1.25% accuracy with 0.25% repeatability and can pass small rust and debris particles that can jam other meter types. The large 4-digit LCD reads in gallons, liters, quarts, pints, ounces, or a custom unit, and a 7-digit non-resettable totalizer keeps a lifetime record of fuel dispensed. The cast-aluminum body has a thick nickel-plated finish for corrosion resistance, and the electronic head can be removed and turned in 90-degree steps to suit the installation. It is factory calibrated, runs on 2 AA batteries (included), and carries ATEX, cULus, and CE certifications with a 2-year warranty.

Key Specs
  • Model: 900CD1.5
  • Flow range: 6-40 GPM / 23-151 LPM
  • Accuracy: Plus or minus 1.25%
  • Repeatability: Plus or minus 0.25%
  • Inlet / outlet: 1.5" female NPT
  • Display: 4-digit LCD batch display; 7-digit non-resettable totalizer
  • Units: Gallons, liters, quarts, pints, ounces, or user-defined
  • Max operating pressure: 50 PSI
  • Operating temperature: -40 to 140 degrees F (-40 to 60 degrees C)
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, mineral spirits, heptane, and hexane
  • Housing: Nickel-plated cast aluminum
  • Power: 2 AA batteries (included)
  • Shipping weight: 8.8 lbs
  • Certifications: ATEX, cULus, CE
  • Warranty: 2 years
Common Uses

Tracking fuel dispensed from farm tanks, fleet fueling stations, and construction fuel trailers, or upgrading a pump with 1.5 inch NPT outlets from a mechanical meter to a digital one.



Detailed Information

PDF  Fill-Rite 900CD1.5 Technical Specifications

PDF  Fill-Rite 900CD1.5 Digital Meter Manual
