Fill-Rite 820 Nutating Disc Meter 1
Lead Time:  1-3 Days
Ships From: Nebraska

Ask a question about this product

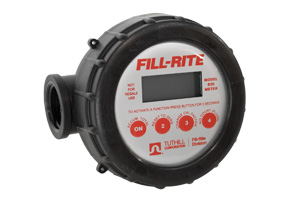

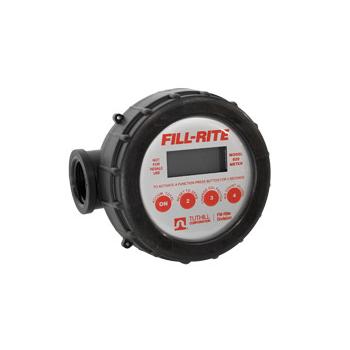

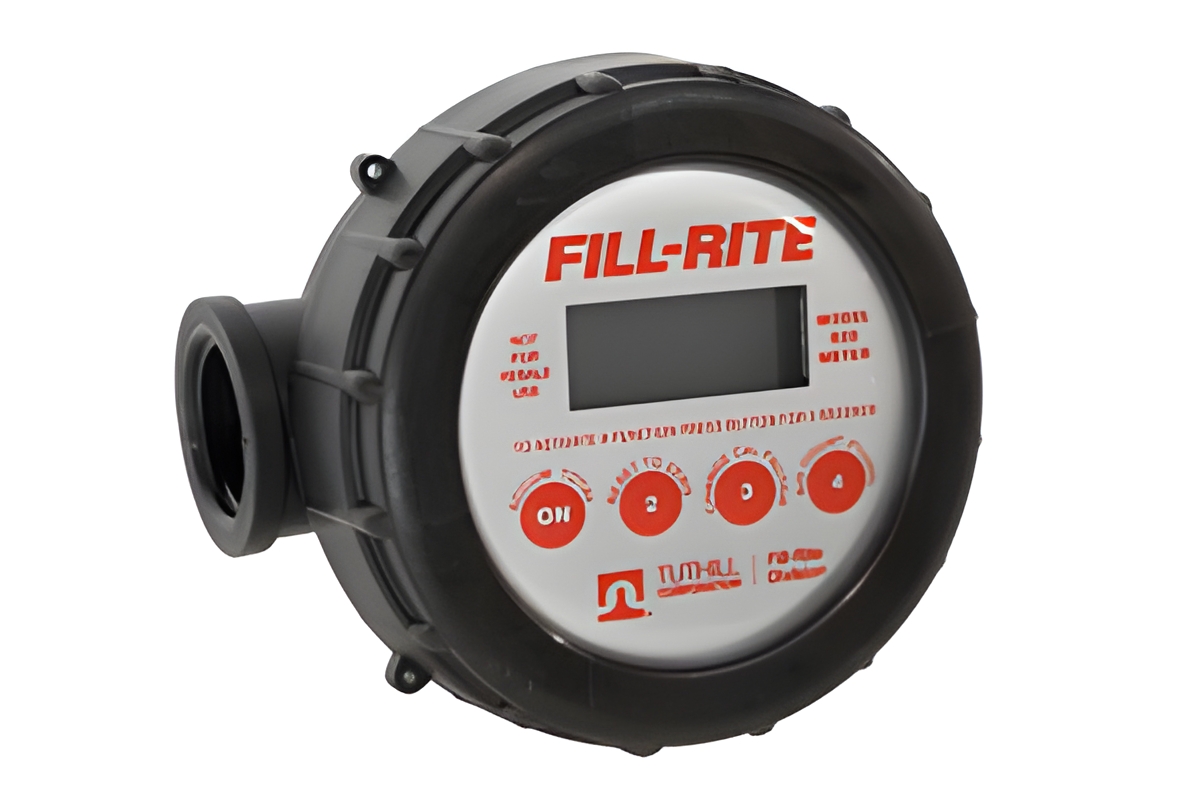

Fill-Rite Positive Displacement - Nutating Disc meter is ideal for end of hose use, in line or mounted to one of our Rotary Vane or 400B Series Diaphragm Pumps. It is able to store and display the current flow amount (total) or the cumulative flow amount (totalizer) in any of six user-specified units.

The rugged corrosion-resistant body for the most demanding applications is easy to install with consistent accuracy up to +/- 0.2% using liquid calibration. Battery powered, LCD display.

Features & Benefits

  • 2-20 GPM Flow
  • Pressures to 125 psi max
  • Glass-filled polypropylene housing
  • Fluorocarbon seals
  • 1 in. FNPT ports
  • -10 F-130 F temperature range
  • 360 positioning display
  • Quick, one step calibration
  • Waterproof, corrosion resistant
  • 20 stored calibration factor settings
  • Two alkaline AA batteries included
Model: 820
Manufacturer: Fill-RiteFill-Rite
Detailed Information

PDF  Fill-Rite 820 Digital Meter Manual
Fill-Rite Warranty Details:


Revision Date: August 1, 2014
Fill-Rite and Sotera Products

Tuthill Transfer Systems ("Manufacturer") warrants each consumer buyer of its products ("Buyer") from date of sale that goods of its manufacture ("Goods") shall be free from defects of materials and workmanship.

The duration of the warranty is as follows:
  • SP100 Series Pumps, 400 Series Pumps: 5 year warranty from the date of sale
  • Heavy Duty Pumps and Meters, 820, 825 and 850 Meters, Cabinet Pumps, Cabinet Meters, TN Meters, TM Meters, TN Meters: 2 year warranty from the date of sale
  • Standard Duty Pumps and Meters, 1600 Pumps, Accessories: 1 year warranty from the date of sale
End users must contact the place where they purchased the product to process a warranty. "Place of purchase" is defined as any authorized TTS Distributor, including any and all retail stores, mail order houses, catalogue houses, on-line stores, commercial distributors.

Manufacturer's sole obligation under the foregoing warranties will be limited to either - at Manufacturer's option - replacing defective goods (subject to limitations hereinafter provided) or refunding the purchase price for such Goods theretofore paid by the buyer, and Buyers exclusive remedy for breach of any such warranties will be enforcement of such obligations of the Manufacturer. If the Manufacturer so requests the return of such Goods, the Goods will be redelivered to the manufacturer in accordance with Manufacturer's instructions FOB Factory.

The remedies contained herein shall constitute the sole recourse of the Buyer against the Manufacturer for breach of warranty. IN NO EVENT SHALL THE MANUFACTURER'S LIABILITY FOR ANY CLAIM FOR DAMAGES ARISING OUT OF THE MANUFACTURE, SALE, DELIVERY, OR USE OF THE GOODS EXCEED THE PURCHASE PRICE.

The foregoing warranties will not extend to goods subject to misuse, neglect, accident, improper installation or maintenance, or have been repaired by anyone other than the Manufacturer or its authorized representative. THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY, FITNESS FOR PURPOSE OF ANY OTHER TYPE, WHETHER EXPRESSED OR IMPLIED. No person may vary the forgoing warranties or remedies, except in writing signed by a duly authorized officer of the Manufacturer. The Buyer's acceptance of delivery of the Goods constitutes acceptance of the foregoing warranties and remedies, and all conditions and limitations thereof.
