Sotera SS445BX727 13 GPM 12V Mix-n-Go Recirculation Pump with 825 Meter

Model/SKU: SS445BX727
Manufacturer Part # SS445BX727

Description

The Sotera SS445BX727 is a 12V DC Mix-N-Go recirculating chemical pump that mounts directly on an IBC tote through a 9 inch recirculating cap. It lets you mix and agitate the tote, then dispense through the included Sotera 825 digital meter, making it a fit for ag retailers, applicators, and growers who store product in totes.

Recirculation keeps mixtures from separating and helps hold a uniform consistency before you fill. Santoprene diaphragms handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS445BX727
  • Configuration: Mix-N-Go, 9" IBC tote recirculating mount with automatic fluid recirculator
  • Power: 12V DC, 1/4 HP thermally protected motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Meter: Sotera 825 digital meter: 2-20 GPM (8-75 LPM), +/- 0.5% accuracy, 4-digit display, 0 to 130 degrees F, 2-year warranty, CE

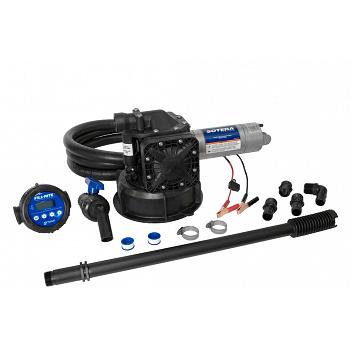

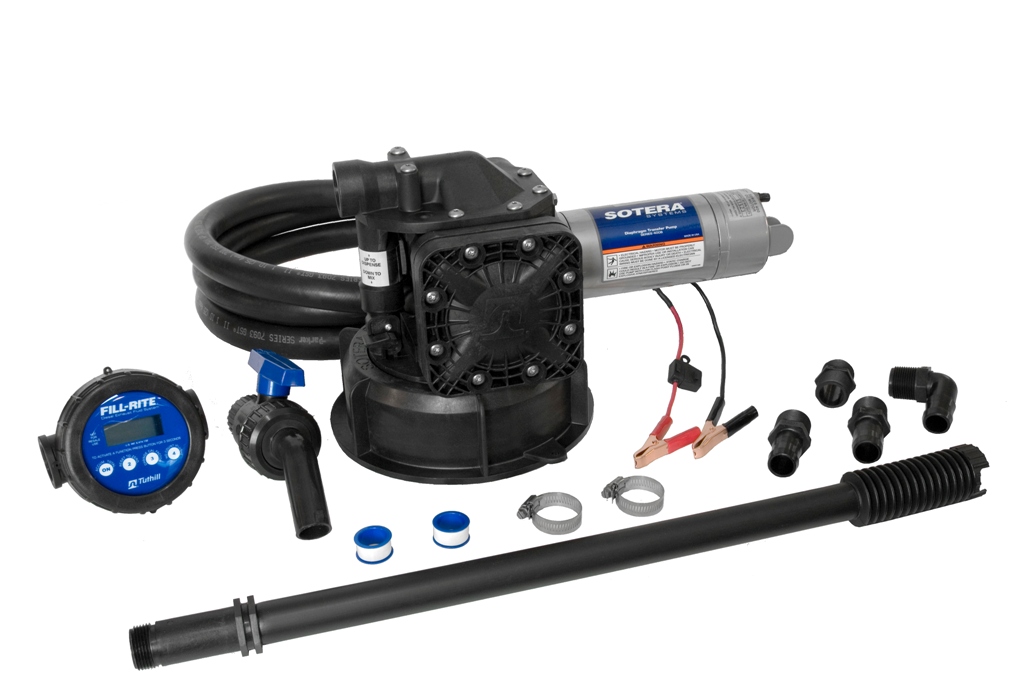

  • Included: pre-installed 12V DC battery cable with clamps and 30 amp fuse; Sotera 825 digital meter; 1" x 12' EPDM discharge hose; 28"-46" polypropylene telescoping suction pipe with bellows; 1" polypropylene shutoff ball valve with tip; 1" NPT check valve; hose barb, hose clamp, and PTFE tape
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor, 2 years on the meter
Common Uses

Mixing and metered dispensing of herbicides, fertilizers, crop chemicals, and other water-based fluids straight from IBC totes at farms, co-ops, and ag retail sites.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
Sotera
Sotera / Fill-Rite Warranty Details:

PDF  Fill-Rite / Sotera Warranty
