Sotera SS435BX713 13 GPM 12V Top/Bottom Tank or Tote Fittings Included (Short Frame Chemtraveller)

Model/SKU: SS435BX713
Manufacturer Part # SS435BX713

Description

The Sotera SS435BX713 is a 12V DC chemical transfer system in a short Chemtraveller frame, supplied with everything needed to draw from either the top or the bottom of an IBC tote. It suits growers and applicators who move between totes and want one kit for both hookups. A meter is not included.

Chemtraveller models are built into a sturdy metal frame that protects the pump and makes it easy to carry and load. Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS435BX713
  • Configuration: Chemtraveller, short frame
  • Power: 12V DC, 1/4 HP thermally protected motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB

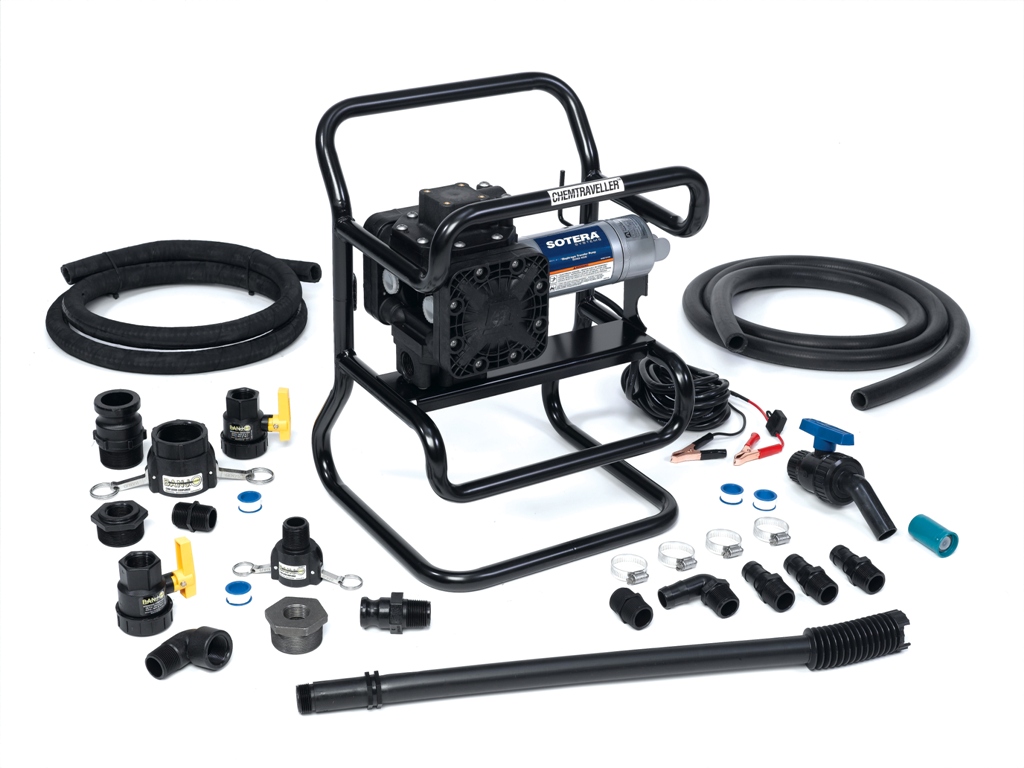

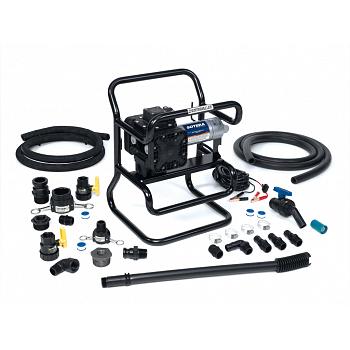

  • Included: pre-installed 12V DC battery cable with clamps and 30 amp fuse; 1" x 12' EPDM discharge hose; 1" x 9' EPDM suction hose; 28"-46" polypropylene telescoping suction pipe with bellows; 1" polypropylene shutoff ball valve with tip; (2) 1" shutoff ball valves; anti-drip nozzle spout; 2" and 1" male adapters, 2" female coupler, 1" female to male coupler, bushings, nipples, elbows, hose barbs, clamps, and PTFE tape; no meter
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor
Common Uses

Transferring herbicides, fertilizers, and other water-based chemicals from IBC totes, through the top opening or the bottom valve, into sprayers and nurse tanks.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
Sotera
Sotera / Fill-Rite Warranty Details:

PDF  Fill-Rite / Sotera Warranty
