Sotera SS435BX700 13 GPM 12V EPDM Gasket and Seals (Short Frame Chemtraveller)

Model/SKU: SS435BX700
Manufacturer Part # SS435BX700

Description

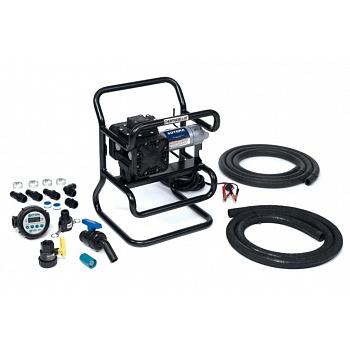

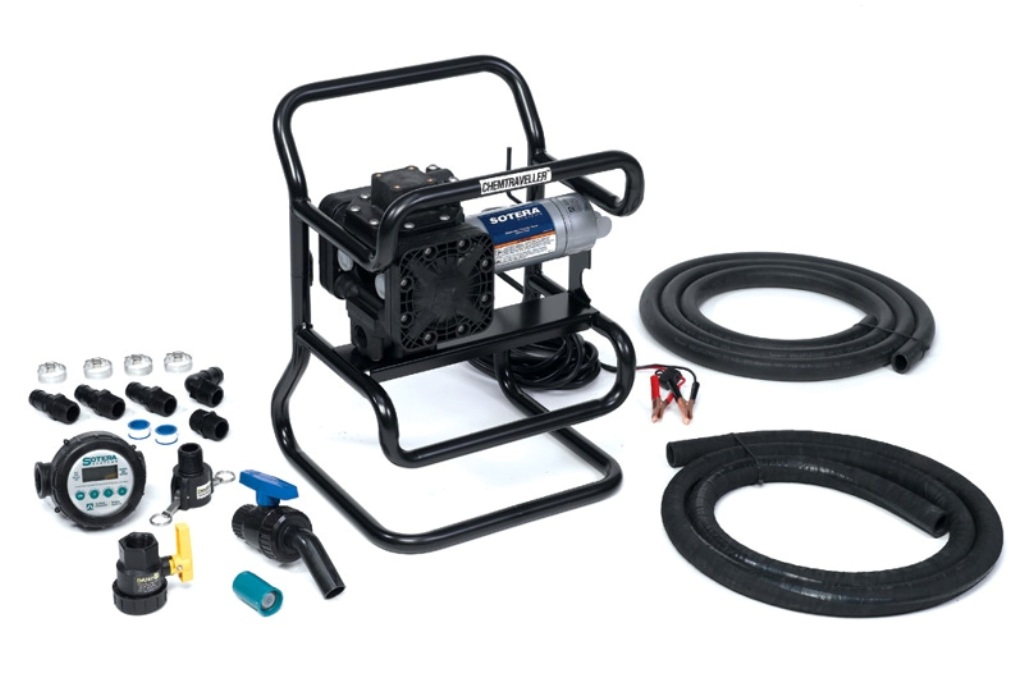

The Sotera SS435BX700 is a 12V DC Chemtraveller chemical transfer system built with EPDM seals throughout. It comes with a Sotera 825 digital meter, suction and discharge hoses, and a shutoff nozzle, for users whose chemicals call for an all-EPDM seal build.

Chemtraveller models are built into a sturdy metal frame that protects the pump and makes it easy to carry and load. Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS435BX700
  • Configuration: Chemtraveller, short frame
  • Power: 12V DC, 1/4 HP thermally protected motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM throughout
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Meter: Sotera 825 digital meter: 2-20 GPM (8-75 LPM), +/- 0.5% accuracy, 4-digit display, 0 to 130 degrees F, 2-year warranty, CE
  • Included: pre-installed 12V DC battery cable with clamps and 30 amp fuse; Sotera 825 digital meter; 1" x 12' EPDM discharge hose; 1" x 9' EPDM suction hose; 1" polypropylene shutoff ball valve with tip; anti-drip nozzle spout; 1" female to male coupler; 1" shutoff ball valve; poly nipple, barbed elbow, (3) hose barbs, (4) hose clamps, and PTFE tape
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor, 2 years on the meter
Common Uses

Metered sprayer and tank filling from drums and totes where an EPDM seal build is preferred for the chemicals being handled.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
Sotera
Sotera / Fill-Rite Warranty Details:

PDF  Fill-Rite / Sotera Warranty
