Sotera SS435BX675 13 GPM 12V Chemical Transfer Pump with 850 Meter (Short Frame Chemtraveller)

Model/SKU: SS435BX675
Manufacturer Part # SS435BX675

Description

The Sotera SS435BX675 is a 12V DC chemical transfer system in a short Chemtraveller frame, paired with Sotera's 850 air-sensing digital meter. It includes suction and discharge hoses, a shutoff nozzle, and a 2 inch coupler for hooking up to drums and totes.

Chemtraveller models are built into a sturdy metal frame that protects the pump and makes it easy to carry and load. Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS435BX675
  • Configuration: Chemtraveller, short frame
  • Power: 12V DC, 1/4 HP thermally protected motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Meter: Sotera 850 air-sensing digital meter: 2-20 GPM (8-75 LPM), +/- 0.5% accuracy, 4-digit display, 0 to 130 degrees F, 2-year warranty, CE

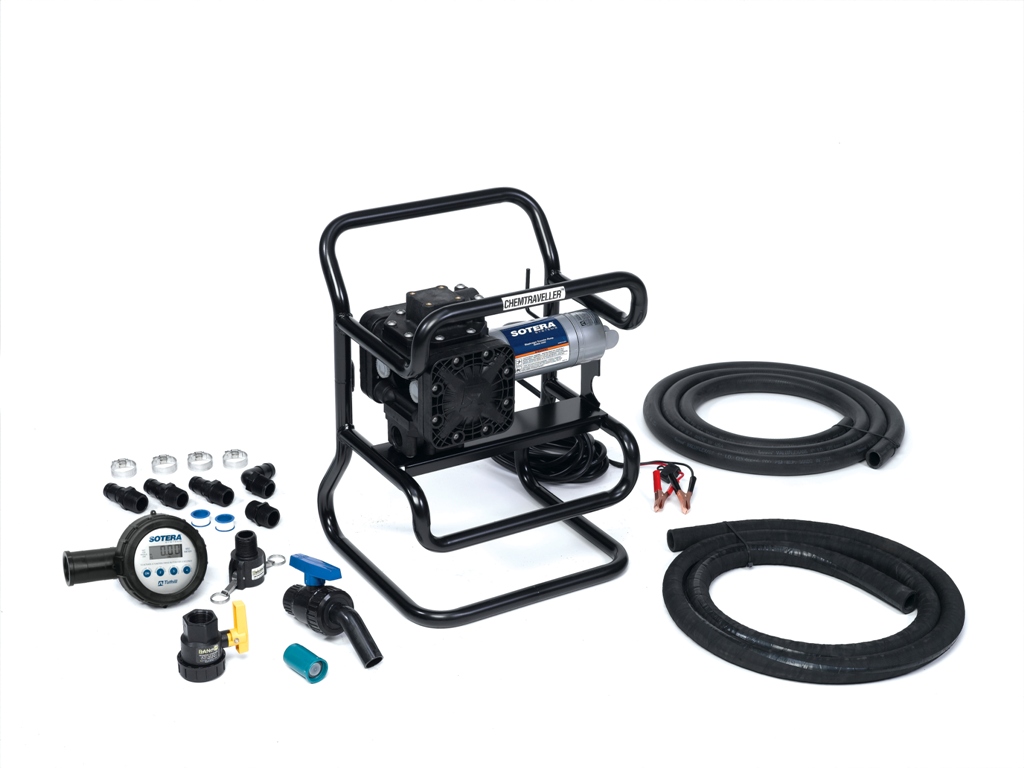

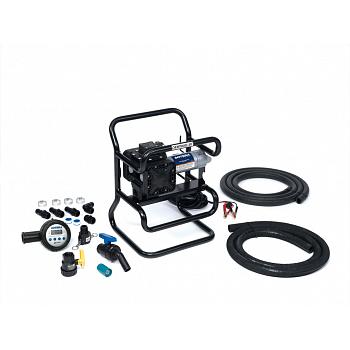

  • Included: pre-installed 12V DC battery cable with clamps and 30 amp fuse; Sotera 850 air-sensing digital meter; 1" x 12' EPDM discharge hose; 1" x 9' EPDM suction hose; 1" polypropylene shutoff ball valve with tip; anti-drip nozzle spout; 1" shutoff ball valve; 2" female coupler; 2" to 1" poly reducer bushing; (2) 1" short poly nipples; (4) hose barbs; (4) hose clamps; (2) PTFE tape rolls
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor, 2 years on the meter
Common Uses

Metered sprayer filling from drums and totes with crop chemicals and other water-based fluids, powered from a vehicle battery.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
