Sotera SS435B 13 GPM 12V Chemical Transfer Pump with 825 Meter (Short Frame Chemtraveller)

Model/SKU: SS435B
Manufacturer Part # SS435B

Description

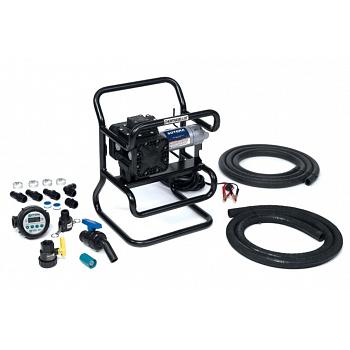

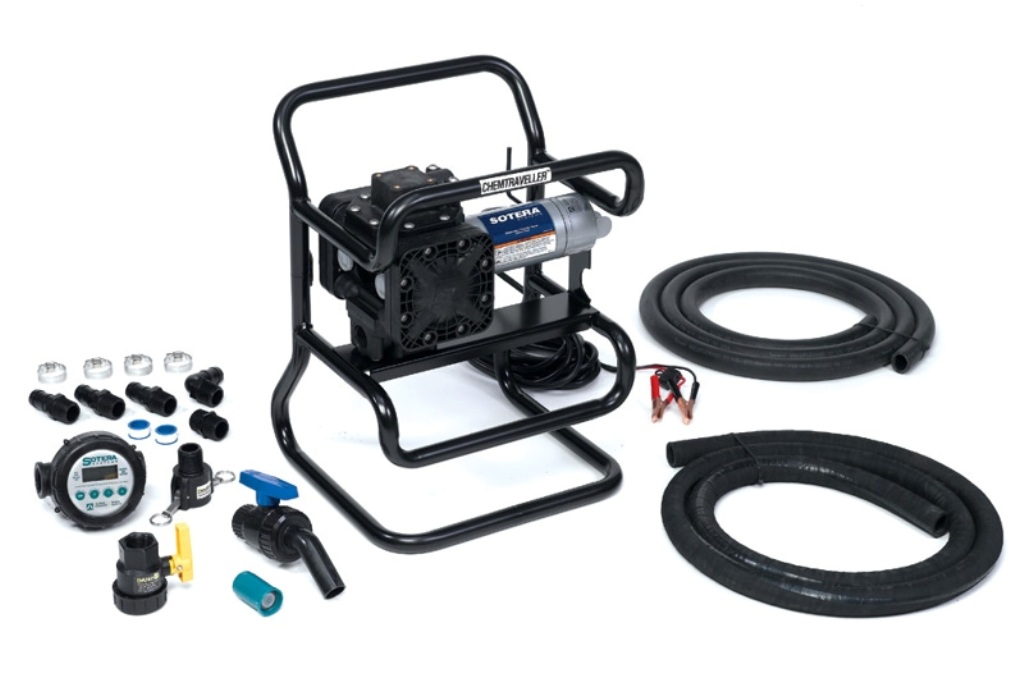

The Sotera SS435B is a 12V DC chemical transfer system built into a short Chemtraveller frame, with a Sotera 825 digital meter, suction and discharge hoses, and a shutoff nozzle included. Chemtraveller is Sotera's most popular configuration and is made to ride along in a farm or tender truck for moving and measuring water-based chemicals.

Chemtraveller models are built into a sturdy metal frame that protects the pump and makes it easy to carry and load. Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS435B
  • Configuration: Chemtraveller, short frame
  • Power: 12V DC, 1/4 HP thermally protected motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Meter: Sotera 825 digital meter: 2-20 GPM (8-75 LPM), +/- 0.5% accuracy, 4-digit display, 0 to 130 degrees F, 2-year warranty, CE
  • Included: pre-installed 12V DC battery cable with clamps and 30 amp fuse; Sotera 825 digital meter; 1" x 12' EPDM discharge hose; 1" x 9' EPDM suction hose; 1" polypropylene shutoff ball valve with tip; anti-drip nozzle spout; 1" female to male coupler; 1" shutoff ball valve; poly nipple, barbed elbow, (3) hose barbs, (4) hose clamps, and PTFE tape
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor, 2 years on the meter
Common Uses

Metered filling of sprayers from drums, totes, and nurse tanks with herbicides, fertilizers, and other water-based chemicals, powered from a vehicle battery.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
