Sotera SS415BX731PG 13 GPM 12V Pump-n-Go with Motor Bracket (With Accessories)

Model/SKU: SS415BX731PG
Manufacturer Part # SS415BX731PG

Description

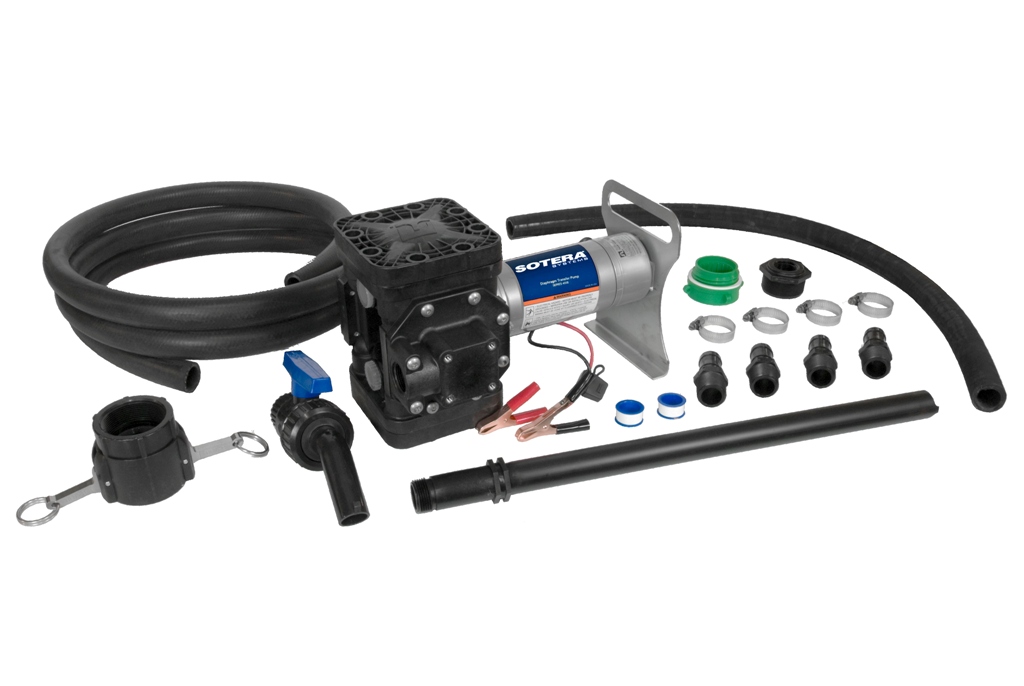

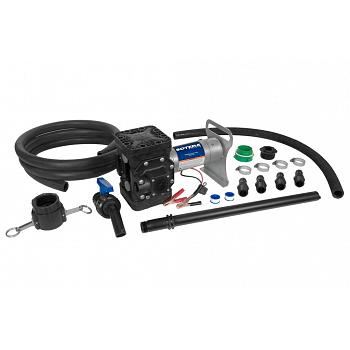

The Sotera SS415BX731PG is a 12V DC Pump-N-Go chemical transfer kit. The pump sits on a motor support bracket so it stands on its own, and it comes with the hoses, suction pipe, valve, and fittings needed to start pumping from drums and totes.

Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS415BX731PG
  • Configuration: Pump-N-Go with motor support bracket
  • Power: 12V DC, 1/4 HP thermally protected motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Included: pre-installed 12V DC battery cable with clamps and 30 amp fuse; 1" x 12' EPDM discharge hose; 1" x 39" EPDM suction hose; 23"-40" polypropylene telescoping suction pipe; 1" polypropylene shutoff ball valve with tip; (4) 1" hose barbs; (4) 1" hose clamps; 2" buttress thread adapter; 2" to 1" poly reducer bushing; 2" female coupler; (2) PTFE tape rolls
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor
Common Uses

Moving herbicides, fertilizers, and other water-based chemicals between drums, IBC totes, and sprayer tanks with one portable 12V setup.
