Sotera SS415BX731 13 GPM 12V Pump-n-Go with Motor Bracket (No Accessories)

Model/SKU: SS415BX731
Manufacturer Part # SS415BX731

Description

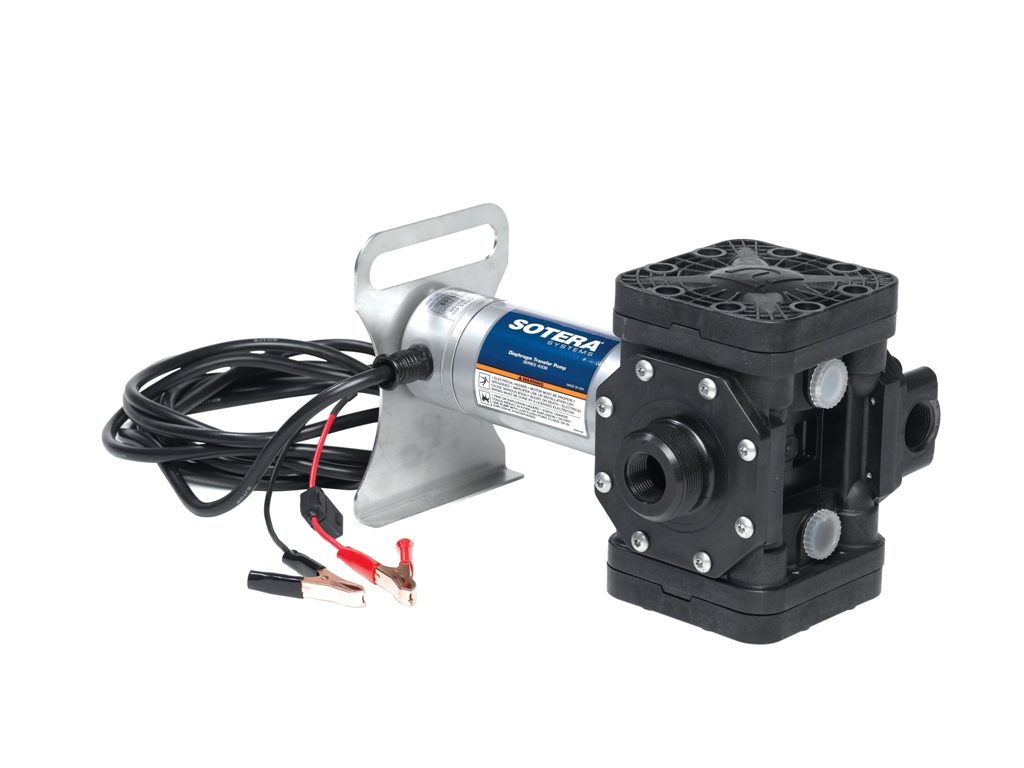

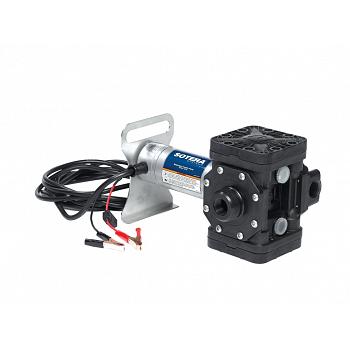

The Sotera SS415BX731 is a 12V DC Pump-N-Go chemical transfer pump. The pump body is turned 90 degrees and a motor support bracket is added, so the unit stands on its own and is easy to carry between drums, totes, and tanks. It ships without hoses or fittings for buyers who want to add their own.

Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS415BX731
  • Configuration: Pump-N-Go with motor support bracket
  • Power: 12V DC, 1/4 HP thermally protected motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Included: 20 ft 12-gauge battery cable with alligator clips and 30 amp fuse; no hoses, nozzle, or fittings
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor
Common Uses

Portable transfer of water-based chemicals on farms, in pickup beds, and around shops, using your own suction and discharge hose.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
