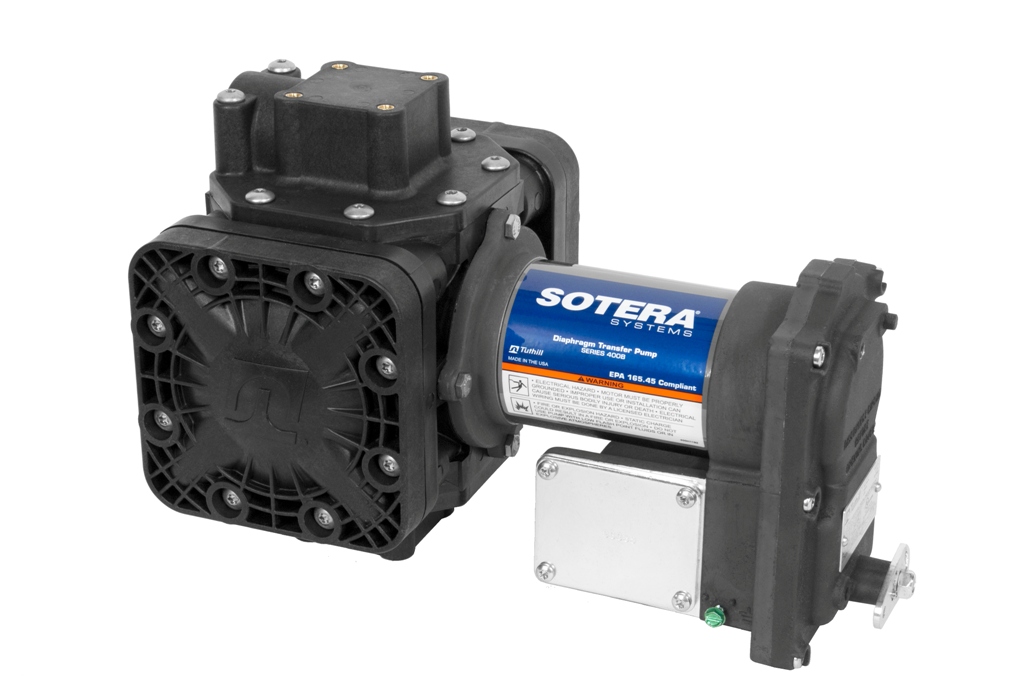

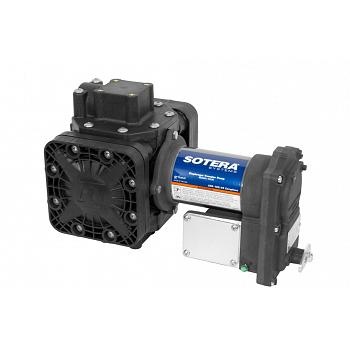

Sotera SS415BEXPX670 13 GPM 12V Chemical Transfer Pump UL Explosion Proof (Pump Only)

Model/SKU: SS415BEXPX670
Manufacturer Part # SS415BEXPX670

Description

The Sotera SS415BEXPX670 is a 12V DC electric diaphragm pump with a cULus listed explosion-proof motor and 90 degree inlet and outlet flanges. It is sold as a bare pump for installers who need an explosion-proof motor on a water-based chemical transfer system.

Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. The explosion-proof motor ships without a power cable, so plan to supply and wire your own DC power cable. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS415BEXPX670
  • Configuration: Pump only, 90 degree inlet and outlet flanges
  • Power: 12V DC, 1/4 HP thermally protected explosion-proof motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Included: Ground wire, (2) wire nuts, cable gland, switch handle, and locking nut; power cable, hoses, and nozzle not included
  • Certifications: cULus listed motor
  • Warranty: 5 years on the pump, 2 years on the motor
Common Uses

Permanent or vehicle-mounted chemical transfer installs where an explosion-proof motor is specified, wired by a qualified electrician to local codes.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
