Sotera SS415B 13 GPM 12V Chemical Transfer Pump (Pump Only)

Model/SKU: SS415B
Manufacturer Part # SS415B

Description

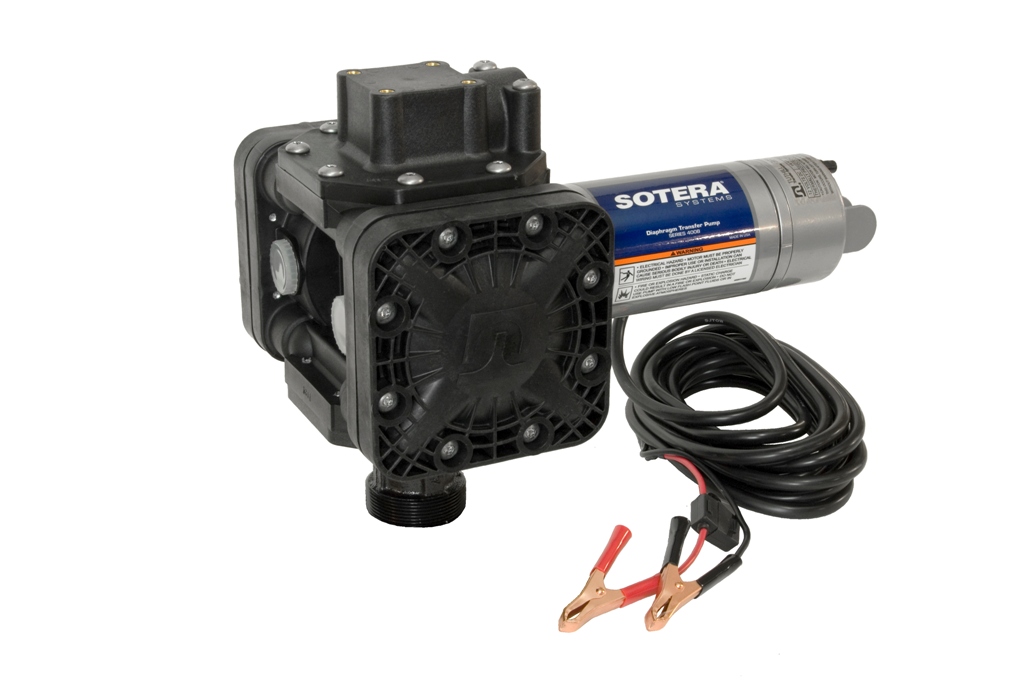

The Sotera SS415B is a 12V DC electric diaphragm pump with a 2 inch NPT bung mount that threads straight into a standard drum or tank opening. It is a pump-only unit for growers, applicators, and facilities moving water-based chemicals from drums and tanks.

Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS415B
  • Configuration: 2" NPT bung mount
  • Power: 12V DC, 1/4 HP thermally protected motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Included: 20 ft 12-gauge battery cable with alligator clips and 30 amp fuse; no hoses, nozzle, or suction pipe
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor
Common Uses

Drum and tank mounting for transferring herbicides, fertilizers, crop chemicals, soaps, and other water-based fluids, run from a truck or tractor battery.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
