Sotera FR410B 13 GPM 12V Gear & Motor Oil Pump with Manual Nozzle and Hose

Model/SKU: FR410B
Manufacturer Part # FR410B

Description

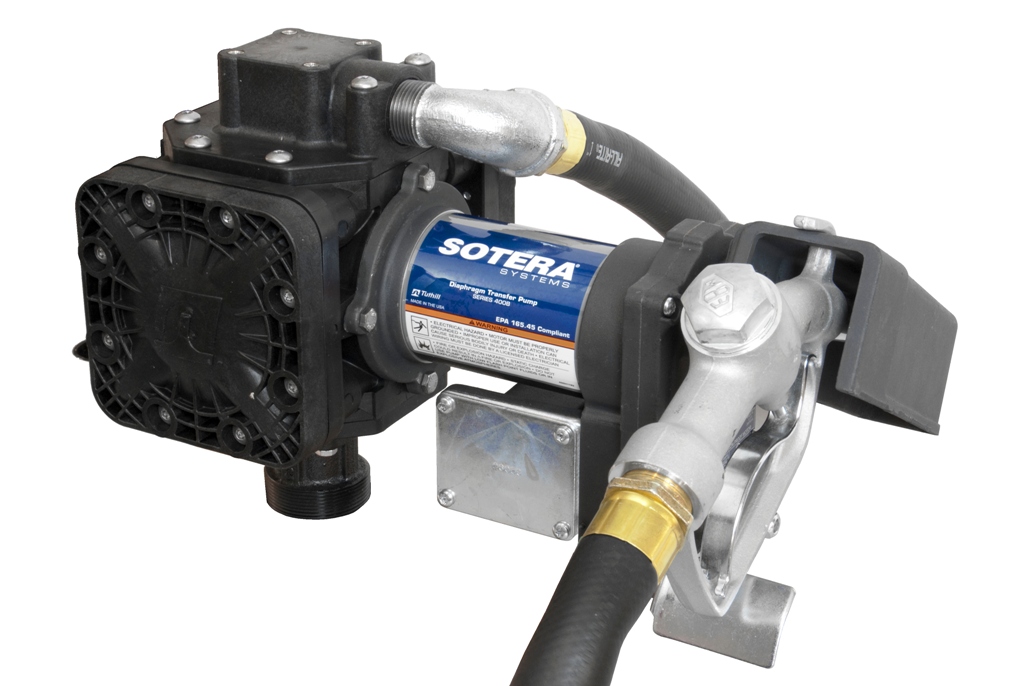

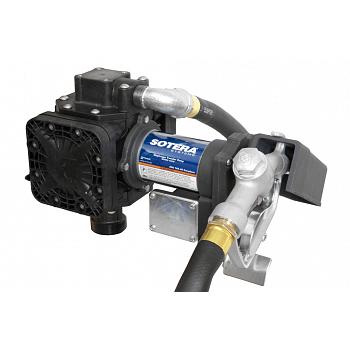

The Sotera FR410B is a 12V DC diaphragm oil transfer pump with a 2 inch NPT bung mount, sold as a complete kit with discharge hose, manual nozzle, and steel suction pipe. It is made for shops, fleets, and farms moving gear oil, motor oil, and hydraulic fluid out of drums.

Hytrel diaphragms are Sotera's choice for gear oil, motor and lube oil, hydraulic fluid, automotive fluids, and waste oil. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. The standard motor is not explosion-proof, so it is not for gasoline or other flammable fuels. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach. Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: FR410B
  • Configuration: 2" NPT bung mount
  • Power: 12V DC, 1/4 HP thermally protected standard-duty motor, 20 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Hytrel
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Included: Pre-installed 12V DC power cable with 30 amp fuse; 1" x 12' hose with static ground wire; 23"-40-1/2" steel telescoping suction pipe; 1" cast aluminum manual nozzle with nozzle boot; 1" NPT street elbow; PTFE tape roll
  • Certifications: cULus listed nozzle
  • Warranty: 5 years on the pump, 2 years on the motor
Common Uses

Dispensing gear oil, motor oil, hydraulic fluid, and similar lubricants from drums in service bays, fleet shops, and farm shops, powered by a 12V battery.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
