Snyder Double Wall Captor Containment System - 2500 Gallon XLPE (1.9 SG) 1
Snyder Industries
Lead Time:  4-8 Weeks
Ships From: NE, WV

Quantity

Customer Reviews
Share this page!

Model: SII-5580000N42
Manufacturer: Snyder Industries

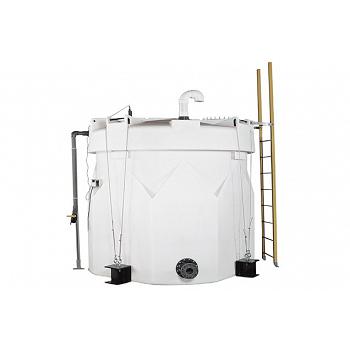

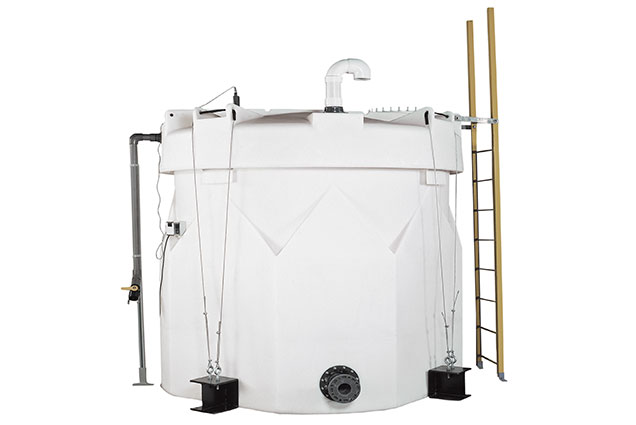

This is the Snyder Double Wall Captor Containment System - 2500 Gallon XLPE. The Captor Containment System protects bulk storage profits without jeopardizing safety or the environment.

Snyder's revolutionary Captor Double Wall Tanks and Containment Systems are designed to alleviate the ever-changing environmental and safety concerns regarding bulk chemical storage and containment for the 21st century.

The Captor double wall tanks unique tank-in-a-tank design enables users and specifiers to incorporate advance performance and safety features on a bulk-handling system, which provides total containment protection. Captor's double wall tank construction is completely enclosed so that external matter, such as dust, rain and snow is prevented from collecting in the outer containment tank.

Besides delivering unparalleled performance benefits, Captor Containment Systems also contribute to your company's bottom line by significantly reducing installation and procurement cost. Every Captor is shipped fully-assembled on either a standard or wide load flat bed trailers, which reduces comparable costs by an average of 35 percent.

Features include-

  • Flanged Outlets and other fitting designs can be securely fastened and sealed to many of the large flat areas located on the top section of the tank (optional).
  • Vent Assemblies are available in a variety of sizes to relieve vacuum and pressure.
  • Fill and/or Draw Pipe Assemblies can be installed to facilitate different material loading or un-loading requirements (optional).
  • U.F.O. (Unified Fitting Outlet) is uniquely designed to mechanically seal fitting outlet through both the inner and outer tank walls. Material unloading is easier and more cost effective than pumping contents from the top of the tank (optional).
  • Bolted and Threaded Manways are available in sizes up to 24”. Standard size is an 18” threaded manway.
  • OSHA Compliant Ladders are available with and without cages in fiberglass and steel construction.
  • Molded in Tie-Down Lugs interface with optional cable restraint system to meet seismic and 150 mph wind load requirements.
  • Outer Containment Tank provides 115-120% of inner tanks capacity for added safety factor. Complies with 40 CFR-264.193.
  • Industrial (ASTM D1998) design standards.
  • Double Wall Tank Construction encloses and interlocks outer and inner tank to prevent rain, snow, and debris from entering outer containment tank.
  • All materials are UV stabilized for long-term outdoor service. There are material options for a diverse range of applications.

Detailed Specifications-

  • Primary Tank Capacity: 2500 gallon
  • Length: 102 in
  • Width: 102 in
  • Height: 122 in
  • Weight: 1100 lbs
  • Primary Tank Specific Gravity: 1.9
  • Primary Tank Material: Cross-linked, high density polyethylene (XLPE).
    • Optional upgrade for sulfuric acid resin #880046 - contact us for a quote.
    • Optional upgrade for sodium hypochlorite opaque white resin #880059 - contact us for a quote.
  • Secondary Outer Containment Tank Material: High-density linear polyethylene (HDLPE) with 1.9 specific gravity. This high-density linear polyethylene complies with FDA Regulation 177.1520 and NSF/ANSI 61 standards.
    • Optional upgrade for cross-linked, high density polyethylene (XLPE) with specific gravity of 1.5 or 1.9 in the natural white color - contact us for a quote.
  • Color: Natural White
  • Fill Opening: 18 inch threaded manway
  • Note: Images may not be 100% accurate, please refer to product drawing.


Drawings & Manuals
Please note that all Snyder tanks may have a 1% to 3% variance from the reported actual dimensions.

PDF  Snyder Double Wall Captor Containment System - 2500 Gallon XLPE

PDF  Snyder Double Wall Tank Systems Brochure

Customer Pickup Locations
PDF  Snyder Customer Pickup Locations And Addresses
Please Note: Customer pickup is available for a flat $25 fee.
Snyder Industries
Snyder Warranty Details:

STANDARD LIMITED WARRANTY

Distributors and their authorized distribution have the responsibility of calling to the attention of their customers any exceptions to the Snyder Industries standard limited warranty, prior to acceptance of an order from the customer for any Snyder Industries product.

Snyder Industries warrants to the purchaser for use that if any manufactured tank product is proven to be defective in material or workmanship within 3 YEARS from the date of original invoice from factory, and Snyder Industries is notified within 15 days after such defect is discovered, Snyder Industries will (at company option) either replace or repair said part. Snyder Industries warrants to the purchaser for use that if any tank fitting, attachment, or accessory product is proven to be defective in material or workmanship within 1 YEAR from the date of original invoice from factory, and Snyder Industries is notified within 15 days after such defect is discovered, Snyder Industries will (at company option) either replace or repair said part. This Snyder Industries Standard Limited Warranty does not apply to damage resulting from misuse, improper application of recommended materials, neglect, material wear, accident, or improper installation or maintenance. Said part will not be considered defective if it substantially fulfills performance specifications. THE FOREGOING STANDARD LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY, FITNESS FOR PURPOSE AND OF ANY OTHER TYPE, WHETHER EXPRESSED OR IMPLIED. Snyder Industries neither assumes nor authorizes anyone to assume for it any other obligation or liability in connection with said tank product and will not be liable for incidental or consequential damages. THE REMEDIES STATED HEREIN SHALL BE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS STANDARD WARRANTY. CLAIMS UNDER THIS STANDARD LIMITED WARRANTY SHALL BE HANDLED UNDER THE SNYDER INDUSTRIES SERVICE POLICY. Snyder Industries will not be responsible for any charges incurred in repairing or servicing any Snyder Industries product except as such repairs are made at Snyder Industries or by Snyder Industries personnel or as approved in writing from Snyder Industries Customer Service.

Due to the uniqueness of tank applications, Snyder Industries may offer warranties other than the standard warranty. These warranty statements will be in writing from Snyder Industries. The warranty period may be longer than 3 years as in the case for purchased extended warranties, or the warranty period may be shorter than 3 years as in the case for certain chemical/material applications. Please consult Snyder Industries if you have any questions regarding warranty coverage and/or requirements.
