Sotera SS465BX713 13 GPM 115V Chemical Tansfer Pump (Tall Frame Chemtraveller)

Model/SKU: SS465BX713
Manufacturer Part # SS465BX713

Description

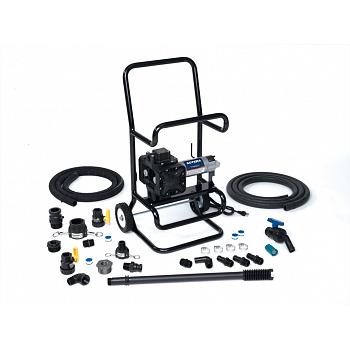

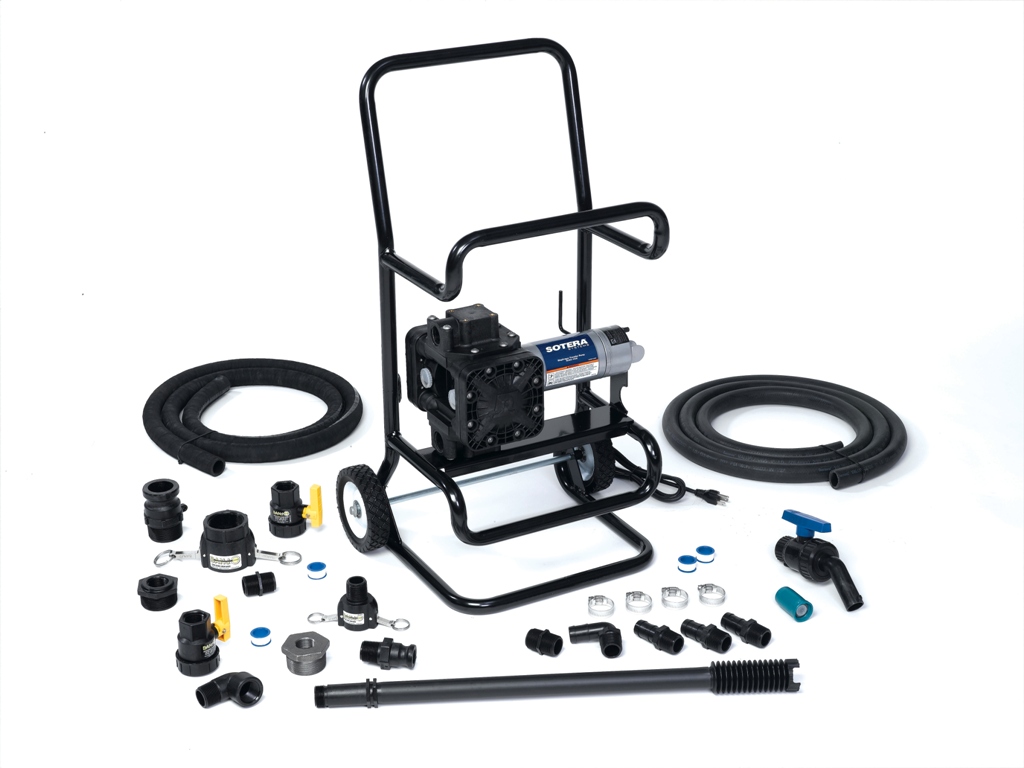

The Sotera SS465BX713 is a 115V AC chemical transfer pump built into a wheeled Chemtraveller frame. It comes with the hoses, suction pipe, valves, and fittings to draw from either the top or the bottom of an IBC tote, so it can roll from tote to tote in a shed, warehouse, or plant.

Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS465BX713
  • Configuration: Wheeled Chemtraveller frame
  • Power: 115V AC, 60 Hz, 1/4 HP thermally protected motor, 2.5 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Included: 6.6 ft 18-gauge power cord with 3-prong grounded plug; 1" x 12' EPDM discharge hose; 1" x 9' EPDM suction hose; 28"-46" polypropylene telescoping suction pipe with bellows; 1" polypropylene shutoff ball valve with tip; (2) 1" shutoff ball valves; anti-drip nozzle spout; tote and drum adapters, bushings, couplers, hose barbs, clamps, and PTFE tape
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor
Common Uses

Moving water-based chemicals from IBC totes and drums to sprayers, nurse tanks, or day tanks wherever 115V shop power is available.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
