Sotera SS460B 13 GPM 115V Chemical Transfer Pump (Bung Mount)

Model/SKU: SS460B
Manufacturer Part # SS460B

Description

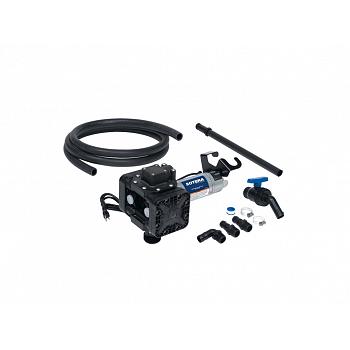

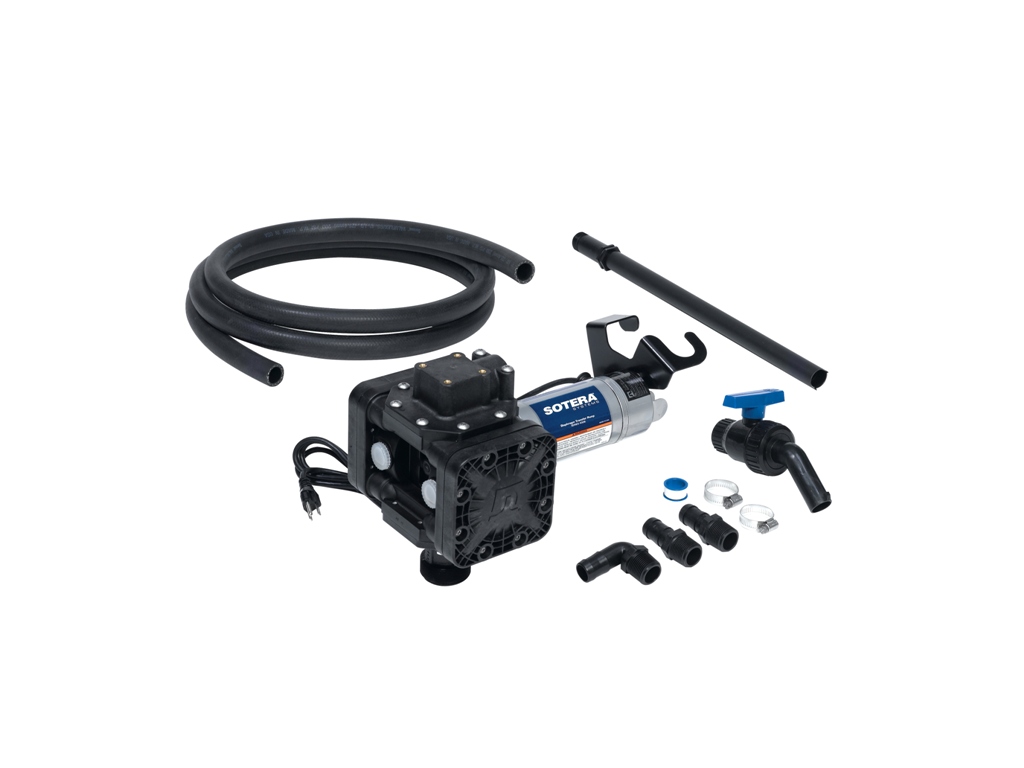

The Sotera SS460B is a 115V AC electric diaphragm pump with a 2 inch NPT bung mount, sold as a ready-to-use kit with discharge hose, suction pipe, and shutoff valve. It is built for shops, plants, and farms moving water-based chemicals from drums and tanks on standard AC power.

Santoprene diaphragms with EPDM seals handle agricultural pesticides, herbicides, fertilizers, glyphosate products, coolant, mild acids, soaps, cleaning solutions, and water. The double diaphragm design holds a steady output pressure, the pump can run dry without internal damage, and when the nozzle or end-of-hose valve is closed the pump goes into neutral with no internal bypass, so motor draw drops as back pressure rises. Internal check valves keep fluid from back-filling the drum or tote, and the glass-reinforced polypropylene body stands up to daily use and weather. It is not intended for strong acids (pH 3.4 or below), strong bases (pH above 12), undiluted flammable liquids with a flash point below 100 degrees F (38 degrees C), or bleach (sodium hypochlorite). Always check the Sotera Chemical Resistance Guide for your fluid before use.

Key Specs
  • Model: SS460B
  • Configuration: 2" NPT bung mount
  • Power: 115V AC, 60 Hz, 1/4 HP thermally protected motor, 2.5 A max
  • Flow rate: Up to 13 GPM (49 LPM) on water-thin fluids; about 12 GPM (45 LPM) at 350 cP
  • Max discharge pressure: 15 PSI (1.03 bar)
  • Suction lift: 9 ft (2.7 m) of water
  • Fluid handling: Viscosity up to 3,700 cP; particles up to 1/10" (2.54 mm)
  • Duty cycle: 30 minutes on / 30 minutes off
  • Inlet / outlet: 1" NPT / 1" NPT
  • Diaphragms: Santoprene
  • Seals: EPDM, NBR, and nitrile
  • Pump operating temperature: -10 degrees F to 130 degrees F (-23 degrees C to 54 degrees C)
  • Max sound level: 76.6 dB
  • Included: Pre-installed power cord with 3-prong grounded plug; 1" x 12' EPDM discharge hose; 23"-40" polypropylene telescoping suction pipe; 1" polypropylene shutoff ball valve with tip; 1" 90 degree barbed elbow; (2) 1" hose barbs; (2) 1" hose clamps; PTFE tape roll
  • Certifications: None listed
  • Warranty: 5 years on the pump, 2 years on the motor
Common Uses

Drum and tank transfer of cleaning solutions, soaps, fertilizers, crop chemicals, and other water-based fluids at fixed locations with 115V power.



Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
