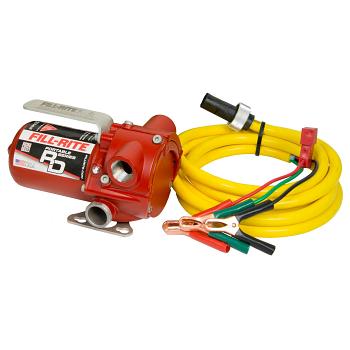

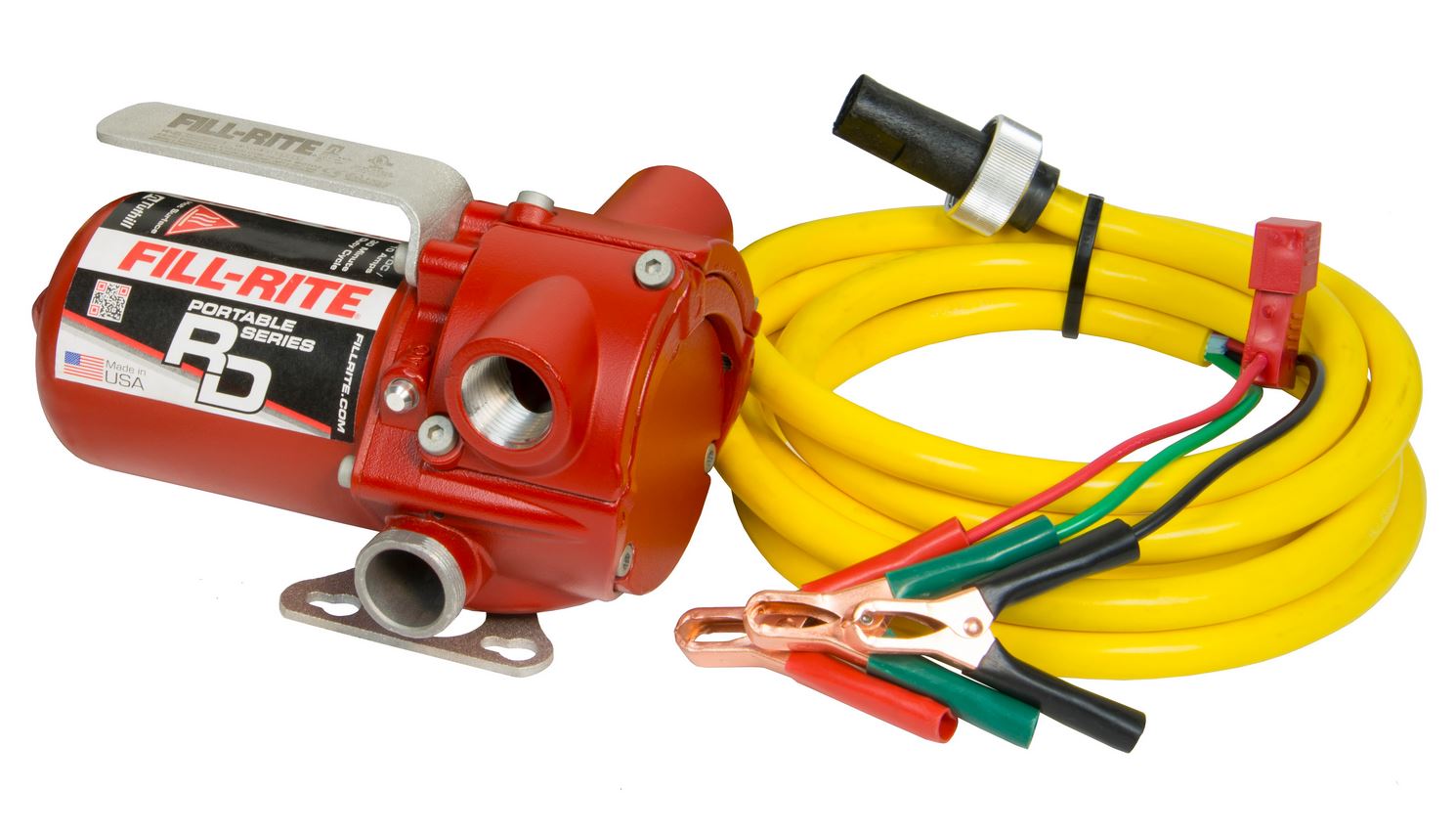

Fill-Rite RD812NN 12V DC Portable Pump Only - 8 GPM

Model/SKU: RD812NN
Manufacturer Part # RD812NN

Description

The Fill-Rite RD812NN is a portable 12V DC fuel transfer pump that moves up to 8 GPM (30 LPM), sold as a pump only with 3/4 inch NPT ports and a 10 foot quick-connect cord with battery clips. Pair it with your own hose and nozzle.

The thermally protected motor draws 14 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, self-priming with 6 feet of suction lift and 37 feet of discharge head. The inlet and outlet flanges can be configured for your installation, and the pump can be bolted to a tank, set on the ground, or carried by the handle. The quick-connect power cord detaches for transport and storage and makes it harder for someone else to use the pump. It is ATEX, CE, cULus, and IECEx certified and backed by a 2-year warranty. The pump runs quietly, at a maximum of 65 dB(A).

Key Specs
  • Model: RD812NN
  • Max flow rate: 8 GPM / 30 LPM
  • Power: 12V DC, 14 A; 0.17 HP thermally protected motor
  • Duty cycle: 30 min on / 30 min off
  • Suction lift / discharge: 6' self-priming suction lift; 37' discharge head (16 PSI)
  • Inlet / outlet: 3/4 inch female NPT
  • Operating temperature: -17 to 105 degrees F
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, and mineral spirits
  • Housing: Cast aluminum
  • Mounting: Foot mount or portable carry handle
  • Power cord: 10' 12-gauge quick-connect cord with battery clips
  • Included: Pump, quick-connect power cord with battery clips, PTFE tape
  • Assembled weight: 8.4 lbs
  • Certifications: ATEX, CE, cULus, IECEx
  • Warranty: 2 years
Common Uses

Building a light-duty 12V fueling setup for small equipment, boats, and generators, or replacing a worn RD8 pump.
