Fill-Rite FR1614 Portable 12 Volt DC Pump 1/5 HP, 3/4 in NPT Inlet 3/4 in Plastic Nozzle - 10 GPM

Model/SKU: FR1614
Manufacturer Part # FR1614

Description

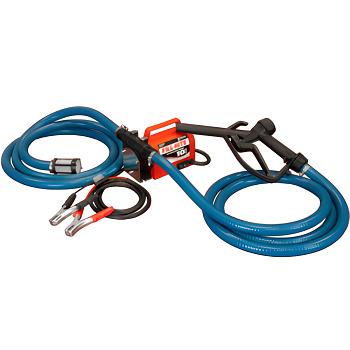

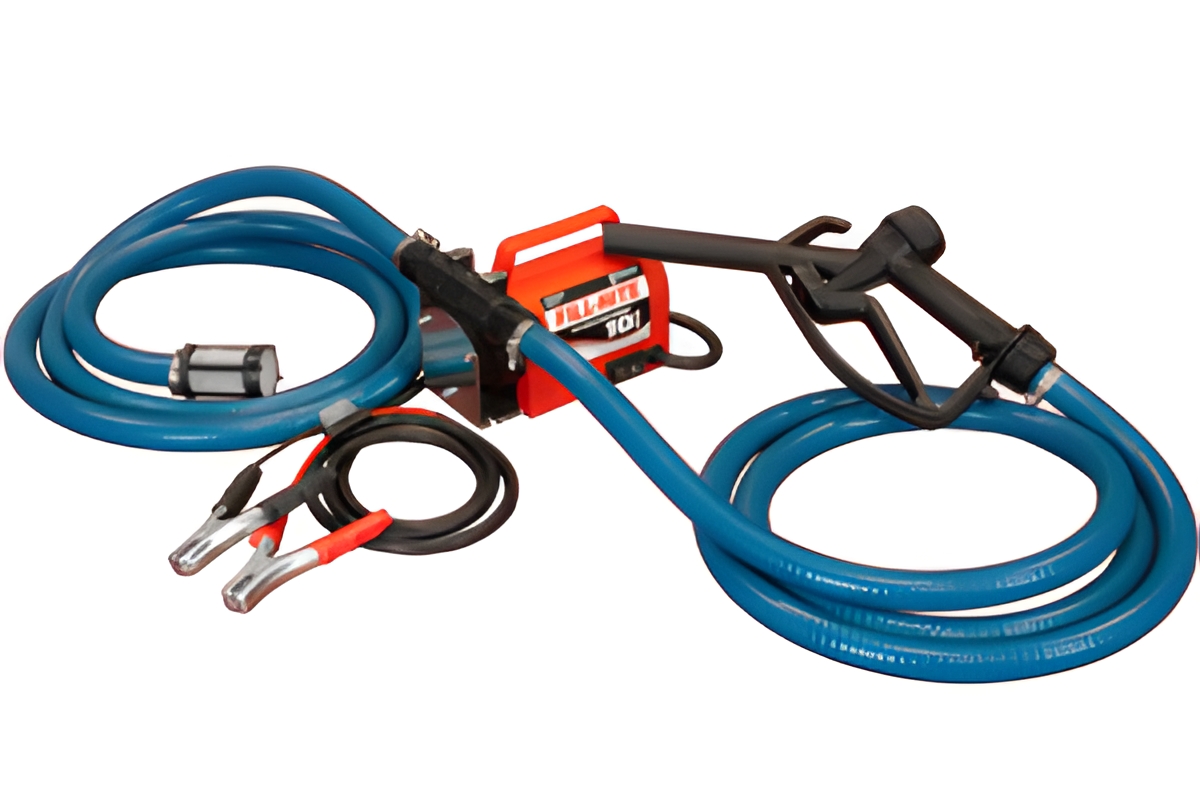

The Fill-Rite FR1614 is a complete portable 12V DC, 10 GPM diesel transfer pump kit. It includes the pump, a 3/4 inch by 8 foot PVC suction hose, a 3/4 inch by 8 foot PVC discharge hose, a 3/4 inch PVC manual nozzle, a barbed strainer, hose-barb fittings, hose clamps, and a battery-clip power cable.

The 1/5 horsepower (0.2 HP) motor draws 17 A, runs on a 30 minutes on / 30 minutes off duty cycle, and is thermally protected. It is self-priming, with 8 feet of suction lift and 36 feet of discharge head. A foot mount and carry handle make it easy to move, and Fill-Rite lists it for diesel, kerosene, and antifreeze; it is not listed for gasoline. It carries CE certification and a 1-year warranty.

Key Specs
  • Model: FR1614
  • Max flow rate: 10 GPM / 38 LPM
  • Power: 12V DC, 17 A; 0.2 HP (1/5 HP) thermally protected motor; 6.5' 12 gauge cable with battery clips
  • Duty cycle: 30 min on / 30 min off
  • Suction lift / discharge: 8' suction lift; 5 in. Hg dry vacuum; 36' discharge head
  • Connections: 3/4" female NPT inlet and outlet
  • Mounting: Foot mount with portable carry handle
  • Compatible fluids: Diesel, kerosene, and antifreeze (not listed for gasoline)
  • Housing / seals: Cast iron housing, HNBR seals
  • Operating temperature: 0 degrees F to 105 degrees F
  • Included: 3/4" x 8' PVC suction hose with hose barbs, 3/4" x 8' PVC discharge hose with hose barbs, 3/4" PVC manual nozzle, barbed strainer, (2) 3/4" NPT to hose-barb fittings, (4) hose clamps, and battery-clip power cable
  • Certifications: CE
  • Assembled weight: 11.1 lbs
  • Warranty: 1 year
Common Uses

A ready-to-use 12V diesel, kerosene, or antifreeze transfer kit for drums and tanks on farms, job sites, and service trucks.



Detailed Information

PDF  FR1614 Manual
Fill-Rite
Fill-Rite Warranty Details:

PDF  Fill-Rite Warranty
