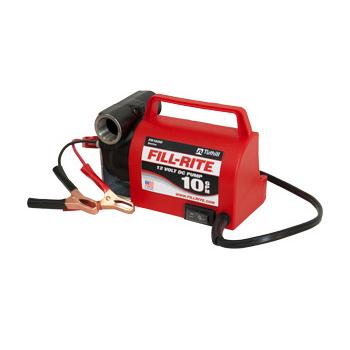

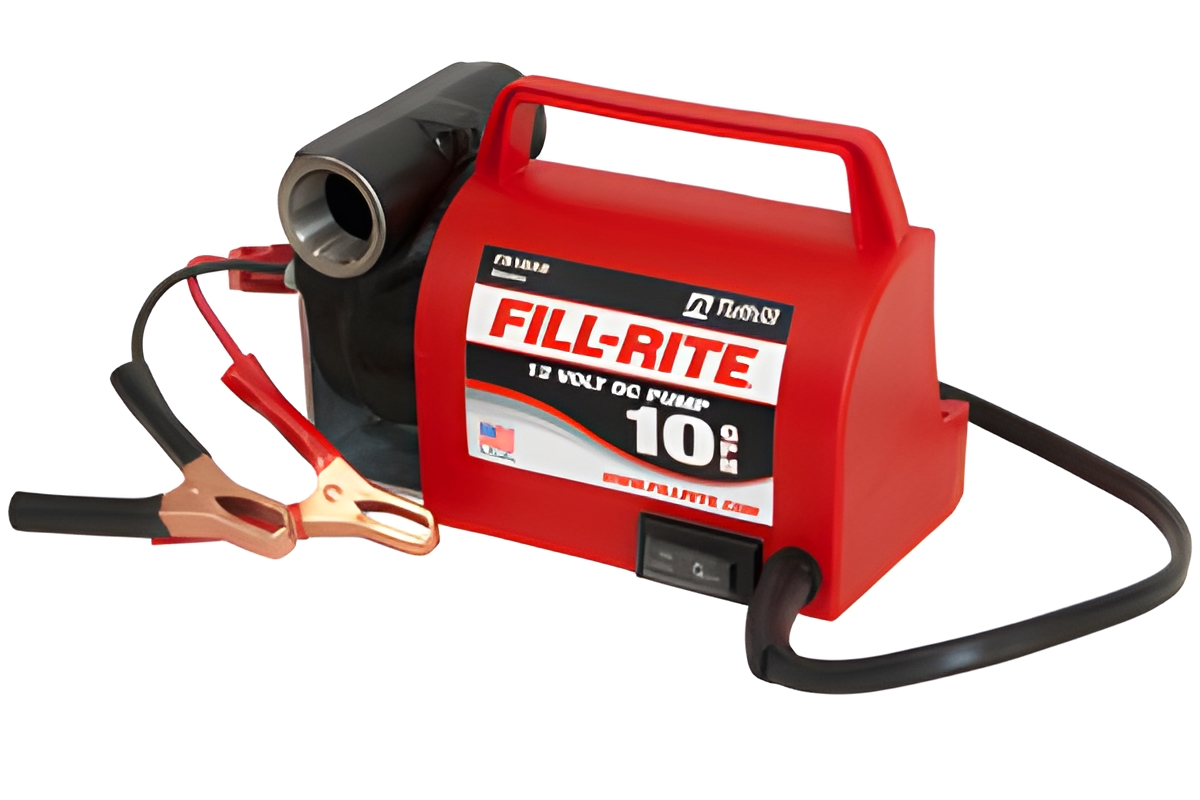

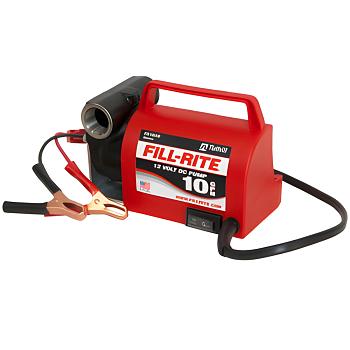

Fill-Rite FR1612 Portable 12 Volt DC Pump 1/5 HP 3/4 in NPT Inlet No Nozzle - 10 GPM

Model/SKU: FR1612
Manufacturer Part # FR1612

Description

The Fill-Rite FR1612 is a portable 12V DC, 10 GPM diesel transfer pump sold as the pump only, with a battery-clip power cable and no hose or nozzle. A foot mount and carry handle make it easy to move between drums, tanks, and job-site containers.

The 1/5 horsepower (0.2 HP) motor draws 17 A, runs on a 30 minutes on / 30 minutes off duty cycle, and is thermally protected. It is self-priming, with 8 feet of suction lift and 36 feet of discharge head, and the 3/4 inch female NPT ports accept standard hose fittings. Fill-Rite lists it for diesel, kerosene, and antifreeze; it is not listed for gasoline. A 6.5 foot, 12 gauge cable with battery clips connects to a 12V battery. It carries CE certification and a 1-year warranty.

Key Specs
  • Model: FR1612
  • Max flow rate: 10 GPM / 38 LPM
  • Power: 12V DC, 17 A; 0.2 HP (1/5 HP) thermally protected motor; 6.5' 12 gauge cable with battery clips
  • Duty cycle: 30 min on / 30 min off
  • Suction lift / discharge: 8' suction lift; 5 in. Hg dry vacuum; 36' discharge head
  • Connections: 3/4" female NPT inlet and outlet
  • Mounting: Foot mount with portable carry handle
  • Compatible fluids: Diesel, kerosene, and antifreeze (not listed for gasoline)
  • Housing / seals: Cast iron housing, HNBR seals
  • Operating temperature: 0 degrees F to 105 degrees F
  • Included: Pump and battery-clip power cable (no hose or nozzle)
  • Certifications: CE
  • Assembled weight: 8 lbs
  • Warranty: 1 year
Common Uses

Portable 12V diesel, kerosene, or antifreeze transfer from a drum or tank on a job site, farm, or service truck when you will add your own hose and nozzle.
