Fill-Rite FR4220HDSQ 12V Fuel Transfer Pump (Suction Pipe, 18' Hose & Auto Nozzle) - 20 GPM

Model/SKU: FR4220HDSQ
Manufacturer Part # FR4220HDSQ

Description

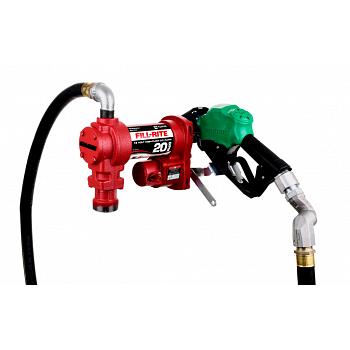

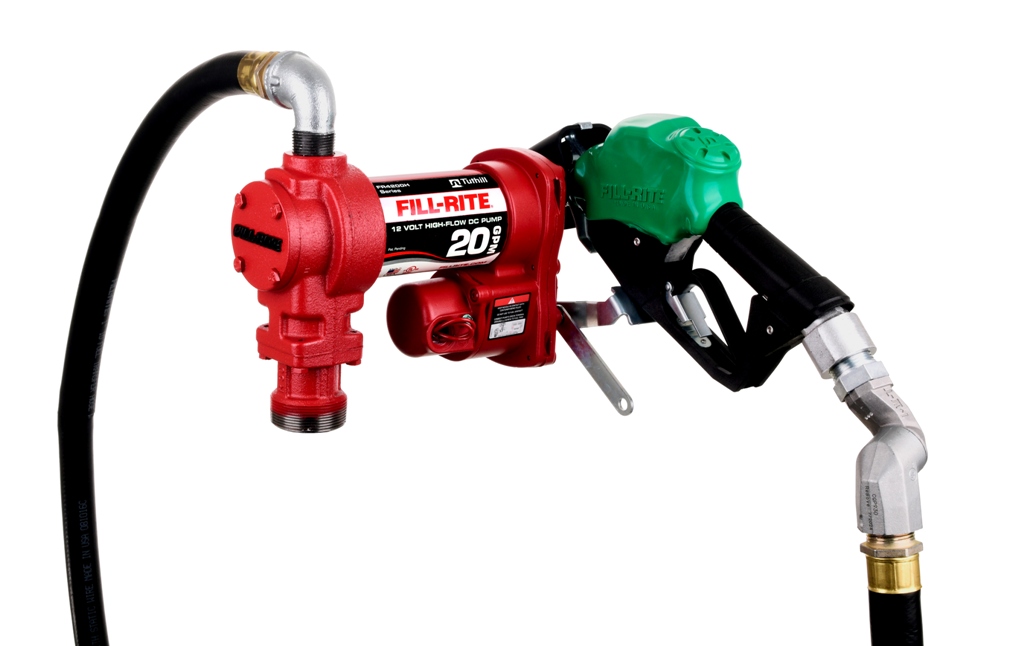

The Fill-Rite FR4220HDSQ is a 12V DC, 20 GPM (75 LPM) heavy-duty cast iron fuel transfer pump packaged with a 1 inch by 18 foot hose with static ground wire, a 1 inch multi-plane swivel, a 1 inch high-flow automatic diesel nozzle (green), a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.

The thermally protected 0.25 HP motor draws 19 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. The 18 foot hose and swivel give extra reach around large equipment. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR4220HDSQ
  • Max flow rate: 20 GPM / 75 LPM
  • Power: 12V DC, 19 A; 0.25 HP thermally protected motor; 18' 12-gauge cable with bare leads
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 1 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Included: 1" x 18' hose with static ground wire, 1" multi-plane swivel, 1" high-flow automatic diesel nozzle (green), 20"-34-1/2" steel telescoping suction pipe, 2-wire 12-ga 18' power cable
  • Package weight: 42 lbs
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

12V diesel transfer tanks that refuel large tractors and construction equipment, where a 20 GPM fill and longer hose reach save time on every stop.
