Fill-Rite FR4211HL 12V Fuel Transfer Pump (Manual Nozzle, Hose, Liter Meter, Suction Pipe) - 20 GPM

Model/SKU: FR4211HL
Manufacturer Part # FR4211HL

Description

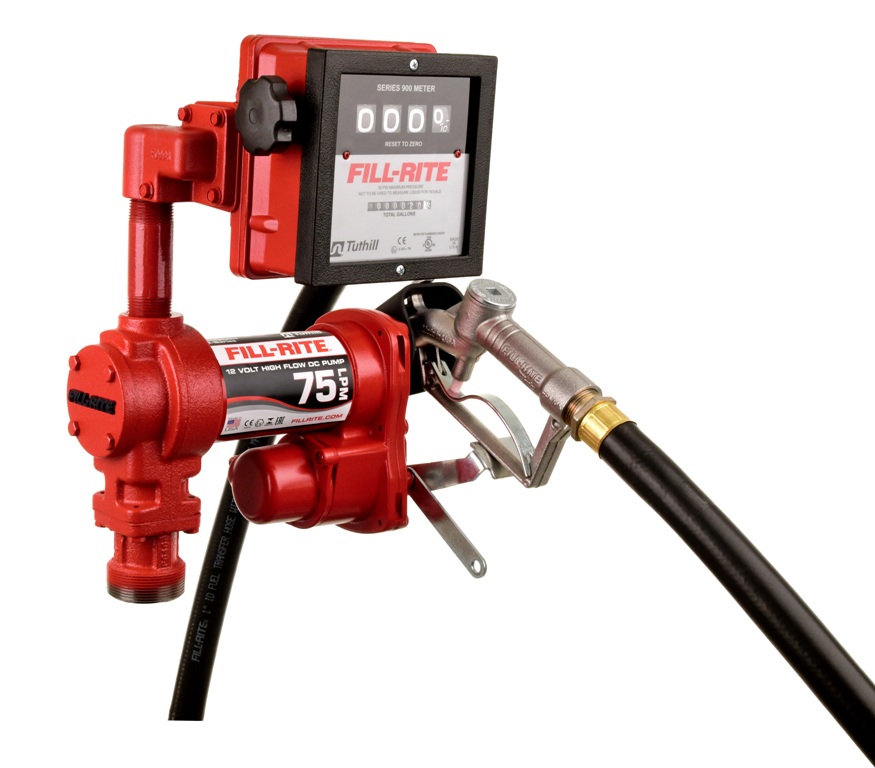

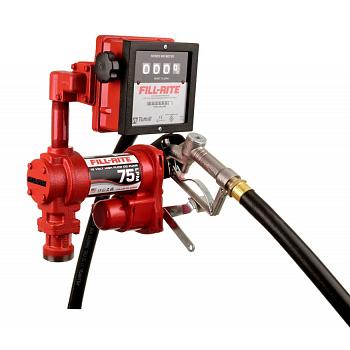

The Fill-Rite FR4211HL is a 12V DC, 20 GPM (75 LPM) heavy-duty cast iron fuel transfer pump packaged with a 901CL 4-digit mechanical liter meter, a 1 inch by 12 foot hose with static ground wire, a 1 inch cast aluminum manual nozzle, a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.

The mechanical meter measures each transfer to within +/- 2% accuracy. The thermally protected 0.25 HP motor draws 19 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR4211HL
  • Max flow rate: 20 GPM / 75 LPM
  • Power: 12V DC, 19 A; 0.25 HP thermally protected motor; 18' 12-gauge cable with bare leads
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 1 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Meter: 901CL mechanical meter (liters), 4-digit display, +/- 2% accuracy

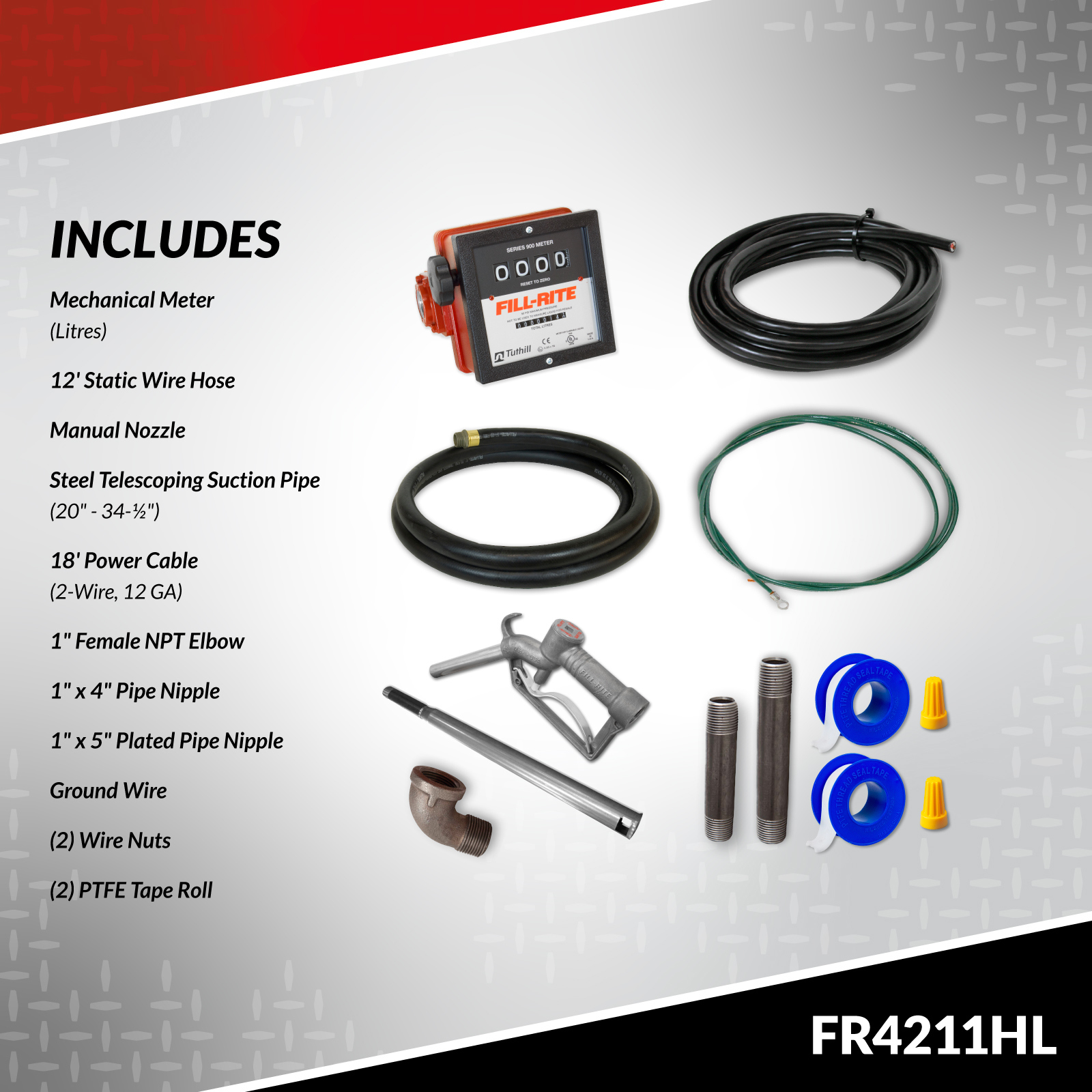

  • Included: 901CL liter meter, 1" x 12' hose with static ground wire, 1" cast aluminum manual nozzle, 20"-34-1/2" steel telescoping suction pipe, 18' 12-ga power cable, nozzle boot, meter reset knob, (2) PTFE tape rolls, 1" NPT street elbow, 1" x 4" pipe nipple, ground wire, cable gland, (2) wire nuts, locking nut, and fastener
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

Higher-volume 12V transfer tanks for operations that record fuel in liters, including Canadian farms, contractors, and fleets.
