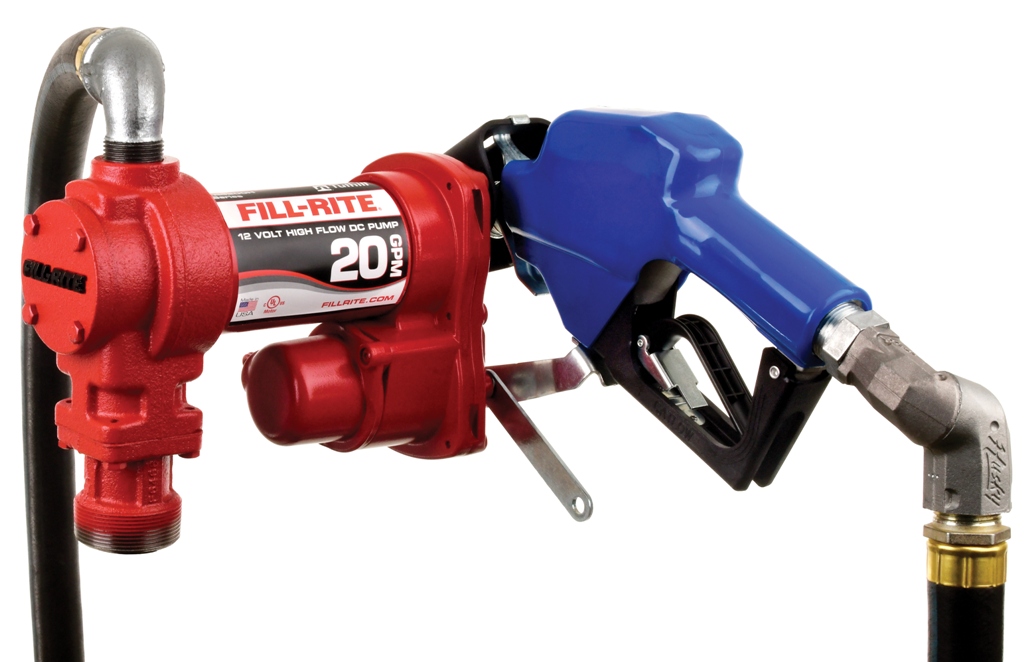

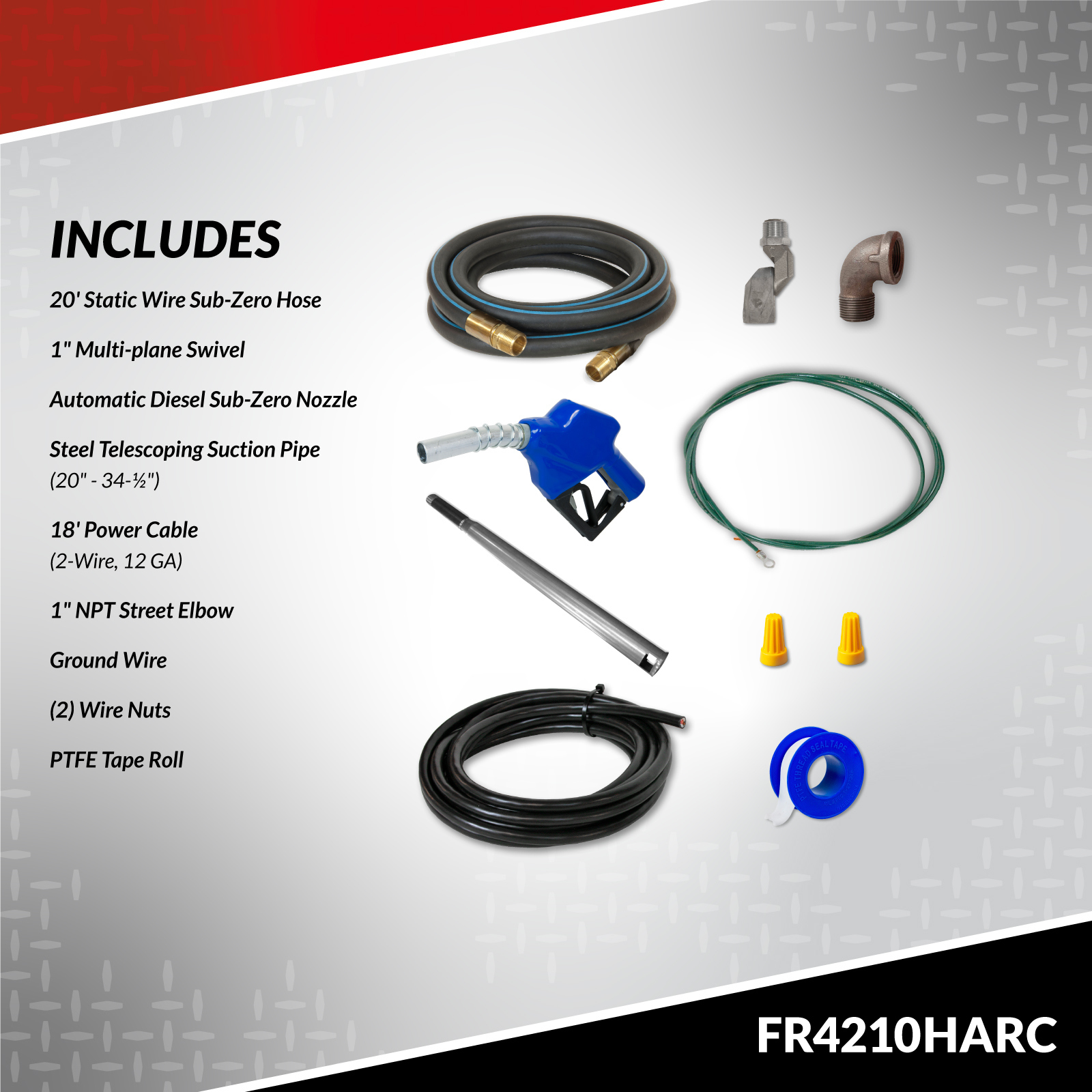

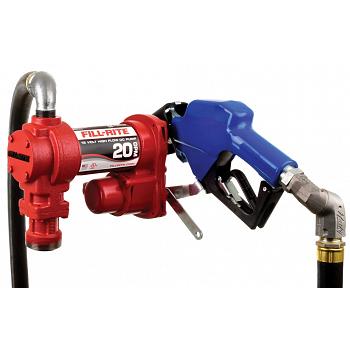

The Fill-Rite FR4210HARC is a 12V DC, 20 GPM (75 LPM) heavy-duty cast iron fuel transfer pump in a cold-weather package. It includes a 1 inch by 20 foot sub-zero rated hose with static ground wire, a 1 inch multi-plane swivel, a 1 inch automatic diesel sub-zero nozzle, a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.
The thermally protected 0.25 HP motor draws 19 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. The sub-zero hose and nozzle are built for winter diesel fueling, and the multi-plane swivel keeps the hose from twisting. It is cULus certified and backed by a Limited Lifetime warranty.
Larger diesel transfer tanks on service trucks and farm rigs working through northern winters, where a faster 20 GPM fill and cold-rated hose and nozzle are needed.
