Fill-Rite FR4210H 12V Fuel Transfer Pump (Manual Nozzle, Discharge Hose, Suction Pipe) - 20 GPM

Model/SKU: FR4210H
Manufacturer Part # FR4210H

Description

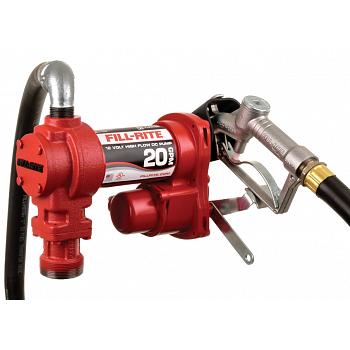

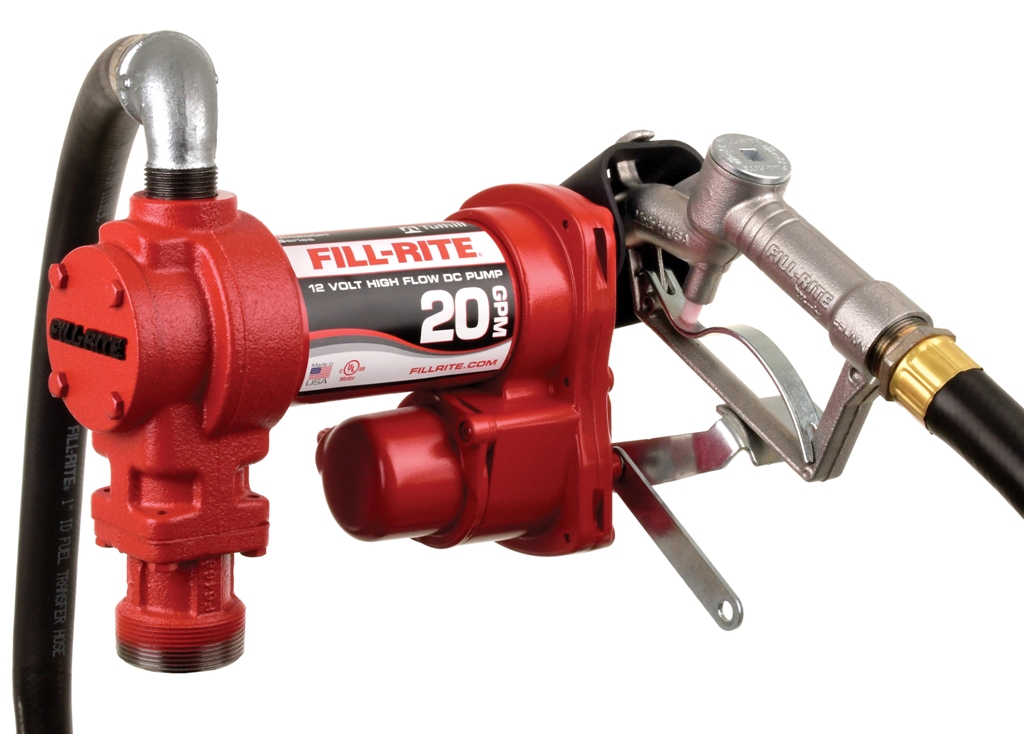

The Fill-Rite FR4210H is a 12V DC, 20 GPM (75 LPM) heavy-duty rotary vane fuel transfer pump packaged with a 1 inch cast aluminum manual nozzle, a 1 inch by 12 foot discharge hose with static ground wire, a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.

This 20 GPM FR4200-series pump uses a 1 inch female NPT outlet and a 1 inch hose and nozzle. Compatible fluids are diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits. The 0.25 HP motor is thermally protected and rated 19 A, with a 30 minutes on / 30 minutes off duty cycle, 8 feet of suction lift, and 37 feet of discharge head (16 PSI). The junction box rotates 180 degrees. It is backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR4210H
  • Max flow rate: 20 GPM / 75 LPM
  • Power: 12V DC, 19 A; 0.25 HP thermally protected motor; 18' 12-gauge cable with bare leads
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 1 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits

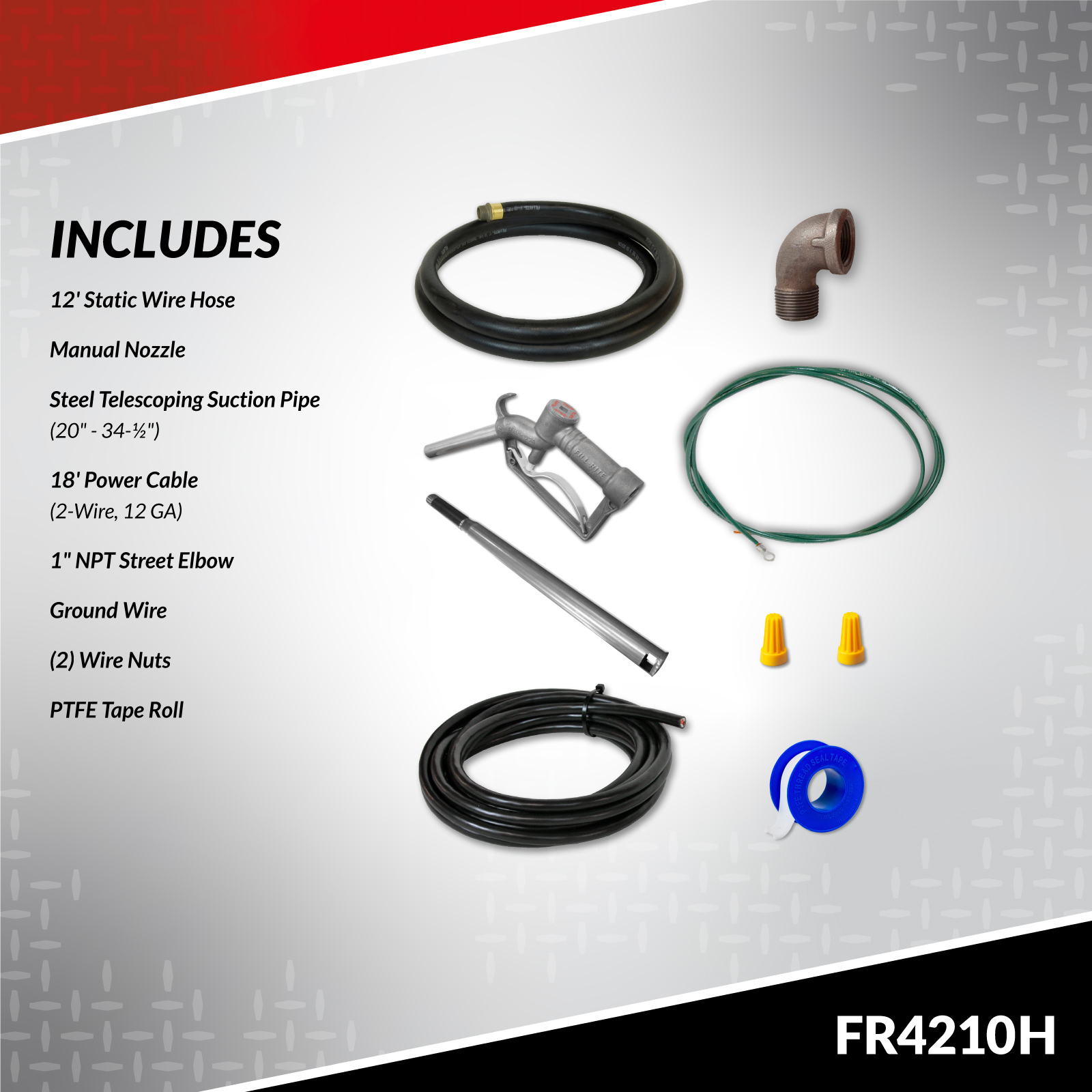

  • Included: 1" cast aluminum manual nozzle, 1" x 12' hose with static ground wire, 20"-34-1/2" steel telescoping suction pipe, 18' 12-ga power cable, nozzle boot, PTFE tape, 1" NPT street elbow, ground wire, cable gland, wire nuts, locking nut, and fastener
  • Assembled weight: 32.2 lbs
  • Warranty: Limited Lifetime
Common Uses

12V transfer tanks that need a faster 20 GPM fill and a 1 inch manual nozzle and hose, such as larger farm or construction equipment.
