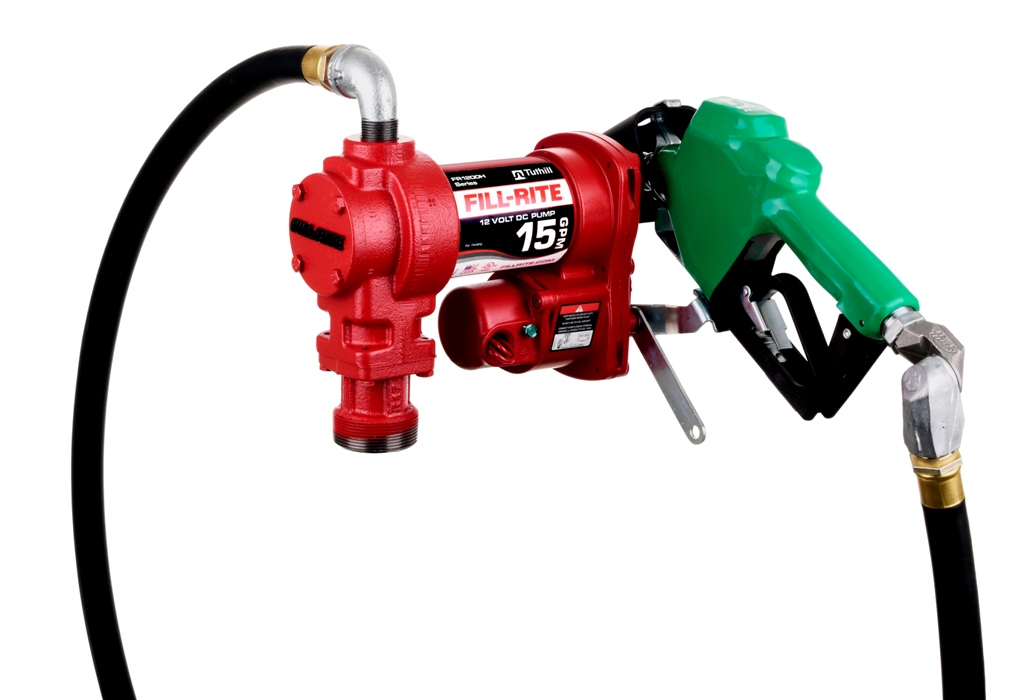

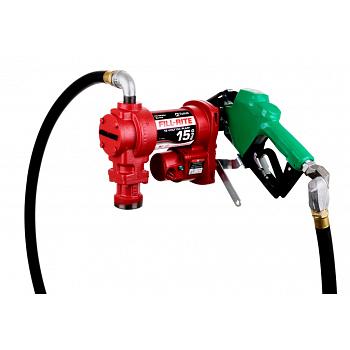

The Fill-Rite FR1220HDSQ is a 12V DC, 15 GPM (57 LPM) heavy-duty cast iron fuel transfer pump packaged with a 3/4 inch by 18 foot hose with static ground wire, a 3/4 inch multi-plane swivel, a 3/4 inch automatic diesel nozzle, a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.
The thermally protected 0.25 HP motor draws 20 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. The 18 foot hose and swivel give extra reach around equipment. It is cULus certified and backed by a Limited Lifetime warranty.
Diesel transfer tanks on pickups and trailers where a longer hose helps reach equipment parked away from the truck.
