Fill-Rite FR1211HL 12V Fuel Transfer Pump (Manual Nozzle, Hose, Liter Meter, Suction Pipe) - 15 GPM

Model/SKU: FR1211HL
Manufacturer Part # FR1211HL

Description

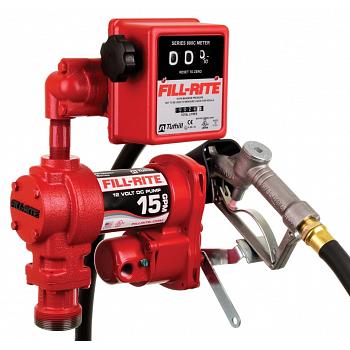

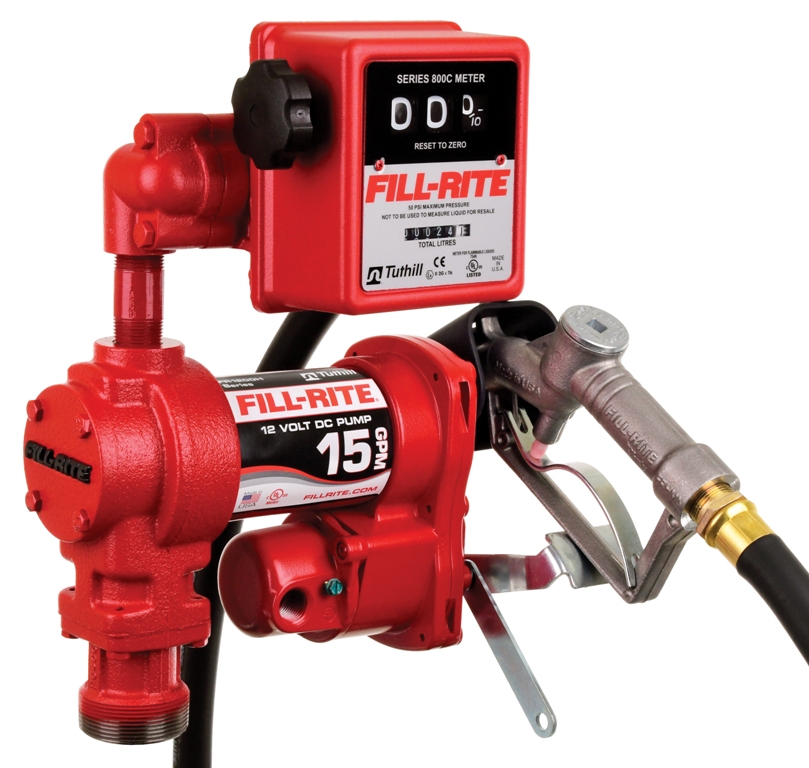

The Fill-Rite FR1211HL is a 12V DC, 15 GPM (57 LPM) heavy-duty cast iron fuel transfer pump packaged with an 807CL 3-digit mechanical liter meter, a 3/4 inch by 12 foot hose with static ground wire, a 3/4 inch cast aluminum manual nozzle, a 20 to 34-1/2 inch steel telescoping suction pipe, and an 18 foot 12-gauge power cable.

The mechanical meter measures each transfer to within +/- 1% accuracy. The thermally protected 0.25 HP motor draws 20 A on 12V DC and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR1211HL
  • Max flow rate: 15 GPM / 57 LPM
  • Power: 12V DC, 20 A; 0.25 HP thermally protected motor; 18' 12-gauge cable with bare leads
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 0.75 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -15 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Meter: 807CL mechanical meter (liters), 3-digit display, +/- 1% accuracy

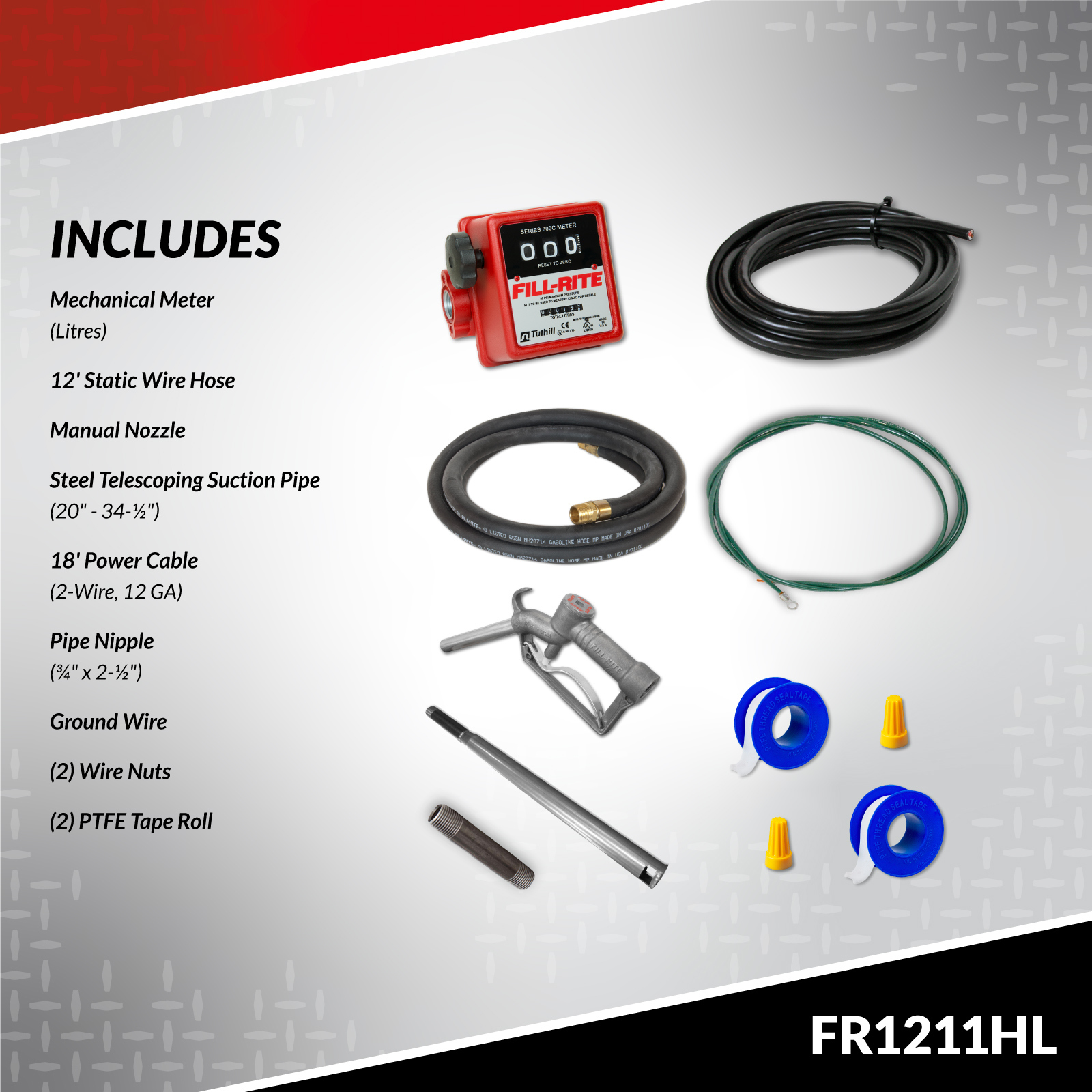

  • Included: 807CL liter meter, 3/4" x 12' hose with static ground wire, 3/4" cast aluminum manual nozzle, 20"-34-1/2" steel telescoping suction pipe, 18' 12-ga power cable, nozzle boot, meter reset knob, (2) PTFE tape rolls, 3/4" NPT street elbow, 3/4" x 2-1/2" pipe nipple, ground wire, cable gland, (2) wire nuts, locking nut, and fastener
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

Transfer tanks for customers who record fuel in liters, including Canadian farms, contractors, and fleets.
