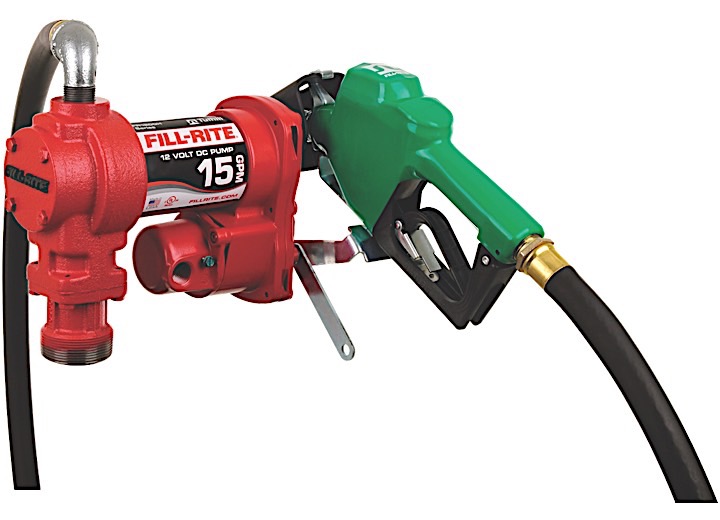

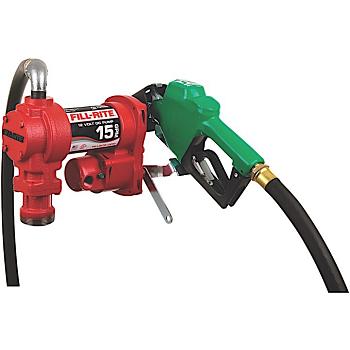

Fill-Rite FR1210HA1 12V Fuel Transfer Pump (Leaded Auto Nozzle, Hose, Suction Pipe) - 15 GPM
Model: FR1210HA1

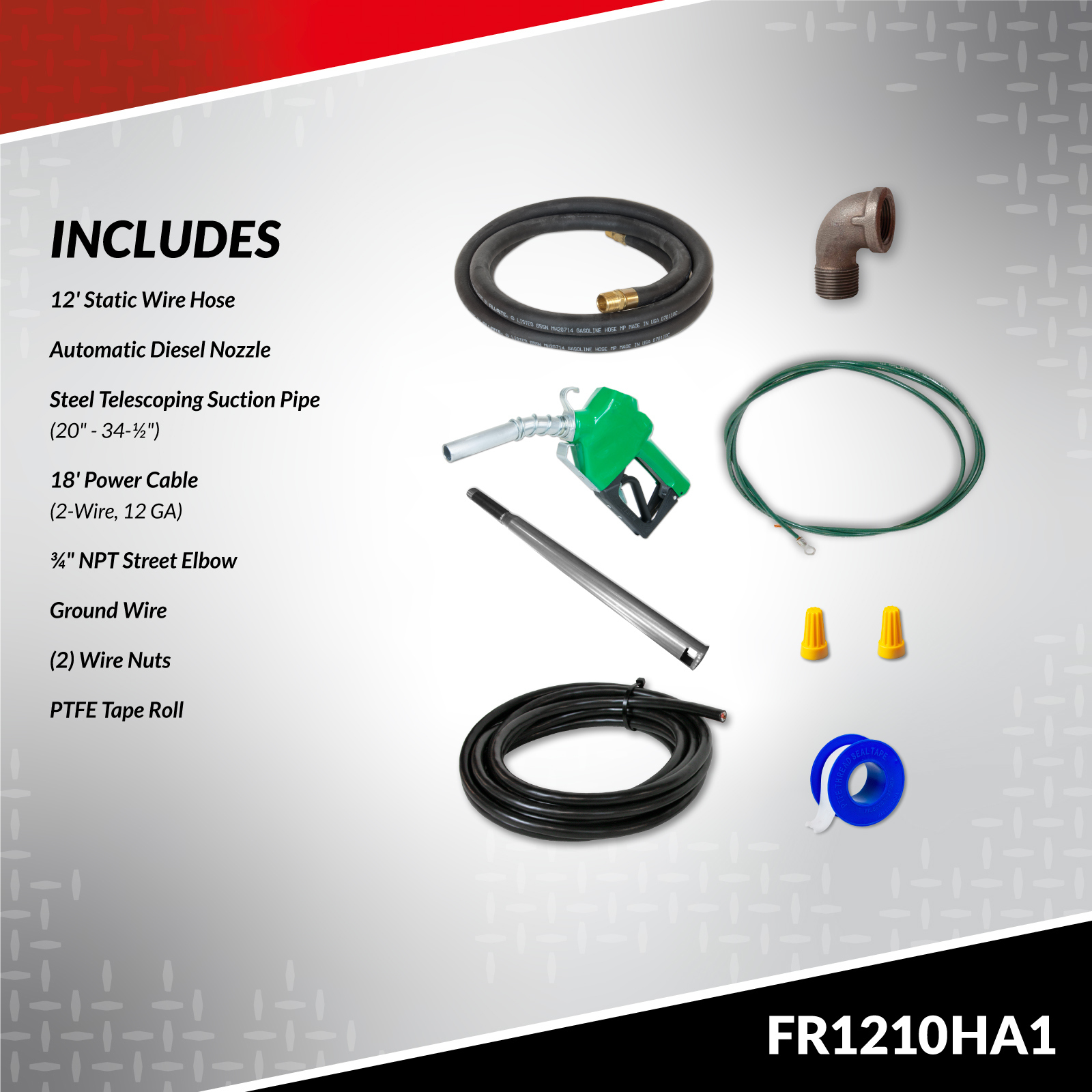

The FR1210HA1 is a 12V 15 GPM fuel transfer pump that comes with a 3/4" x 12' discharge hose, 3/4" leaded auto nozzle (green cover), 1" x 34" telescoping steel suction pipe, 3/4" elbow, 5' 12-gauge ground wire, and a 18' 12 gauge 2-wire battery cable. It can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15%, and bio-diesel up to B20. The previous FR1210GA1 model has been updated to the FR1210HA1 model. With a removable junction box, the product is now easier to install. The performance specifications of the product did not change.

• Durable cast iron pump housing built to withstand the wear and tear of rough operating environments
• Removable junction box allows for easier installation
• Thermal overload protection prevents motor from overheating during abnormal usage
• Pump is capable of pumping fluid out of an 8' deep storage tank (at sea level)
• Rugged switch lever is designed to endure heavy abuse

Detailed Information

  Sales Sheet

  Technical Data Sheet

  Product Manual
