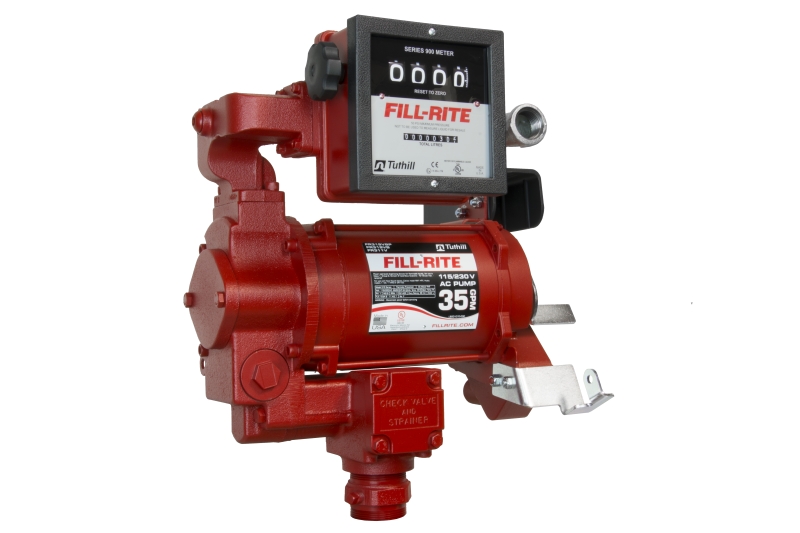

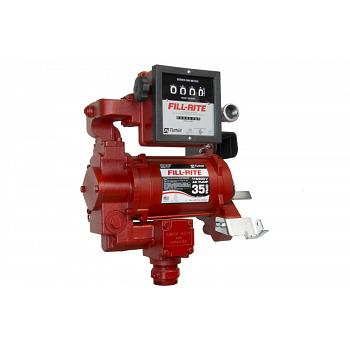

Fill-Rite FR311VLN 115/230V High Flow AC Pump with Liter Meter - 30 GPM 1Fill-Rite FR311VLN 115/230V High Flow AC Pump with Liter Meter - 30 GPM 2
Lead Time:  3-5 Days
Ships From: Indiana


Ask a question about this product

Quantity


Model: FR311VLN
Manufacturer: Fill-Rite

High Flow AC Utility Rotary Vane Pumps. With a flow rate few pumps can match. the FR311VLN has an open flow rate of 30 GPM. This pump provides long life. Explosion-proof UL listed dual voltage 3/4 HP motor (115 and 230 VAC).  Motor has sealed bearings, heavy-duty switch and thermal overload protection Built-in junction box Cast iron pump housing with iron rotor and carbon vanes Check valve, pressure relief valve and strainer assembly, Automatic bypass valve, 2 in. threaded bung for tank openings. 901 Meter Included. 2-Year Warranty.

Features & Benefits

  • Pump and liter meter only
  • Shown with optional hose and manual nozzle
  • 30 GPM (113 LPM)
  • 3/4 HP motor
  • UL/cUL listed pump and motor
  • Compatible with gasoline*, diesel, B20, E-15, and kerosene
  • Heavy duty cast iron construction
  • 2 year warranty
  • 2 in. threaded bung for tank openings
  • Iron rotor with carbon rotary vanes
  • Self priming
  • Check valve, pressure relief

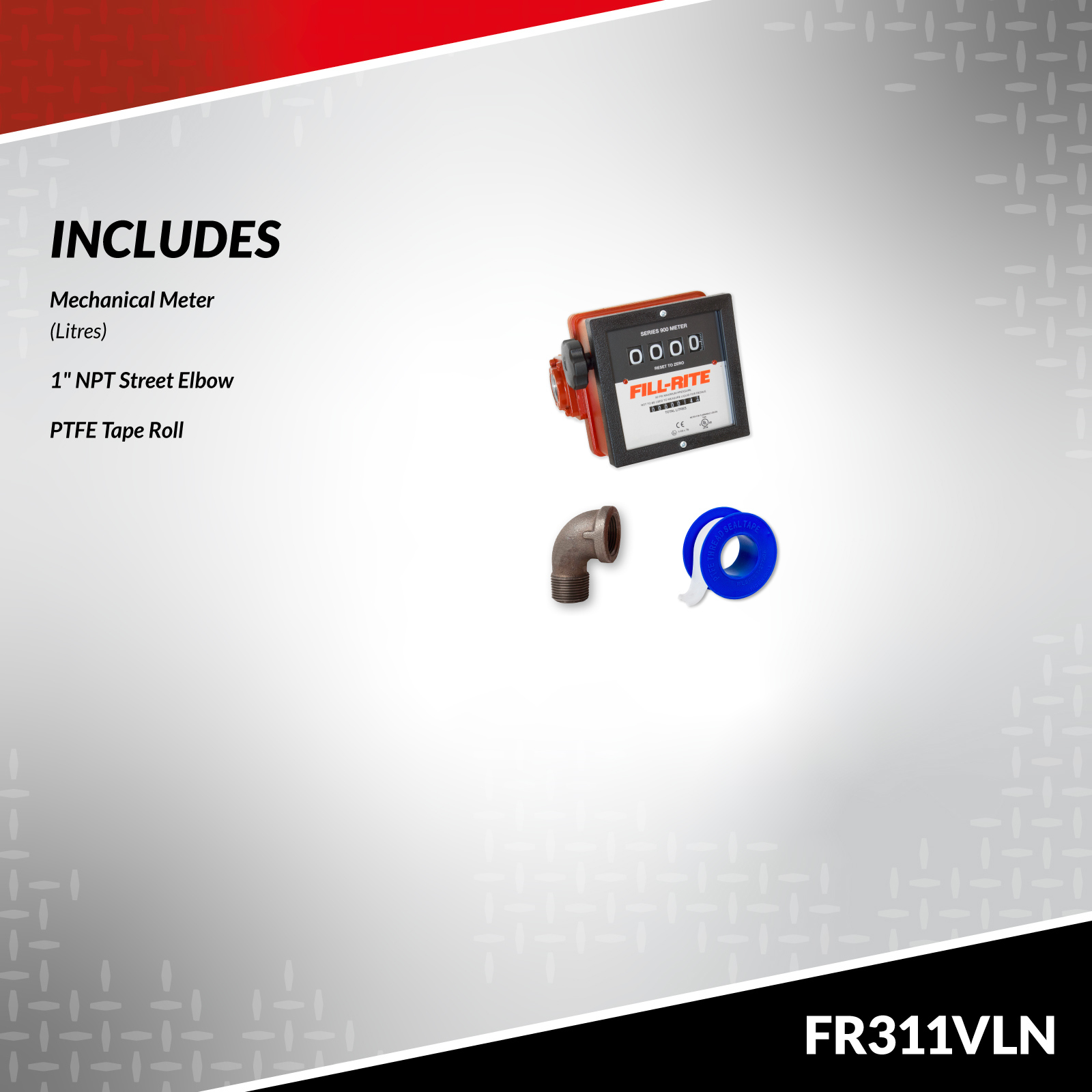

  • 901L meter


* When pumping Gasoline: The 300 Series pump is a very high flow pump and you may experience vapor lock issues in very hot weather in some applications due to the nature of gasoline. Consider our 700 Series models if you are pumping gasoline in very hot climates.

Detailed Information

PDF  FR311VLN Spec Sheet

PDF  FR311VLN Manual

Fill-Rite
Fill-Rite Warranty Details:

PDF  Fill-Rite Warranty
