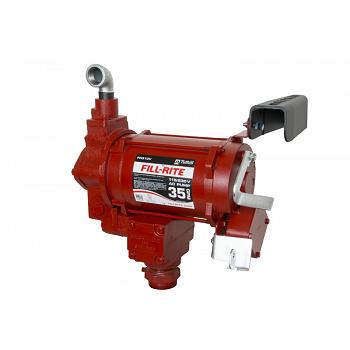

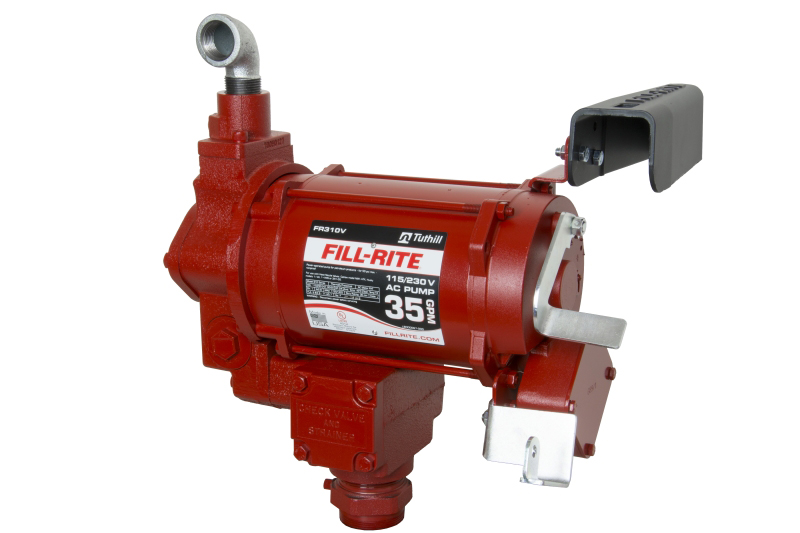

Fill-Rite FR310VN 115/230V High Flow AC Pump Only - 35 GPM

Model/SKU: FR310VN
Manufacturer Part # FR310VN

Description

The Fill-Rite FR310VN is the pump-only version of Fill-Rite's 115/230V AC, 35 GPM (132 LPM) FR300-series rotary vane pump. It has a 1 inch outlet and ships with installation fittings, not a discharge hose, nozzle, or meter.

Compatible fluids are diesel, kerosene, and biodiesel up to B20. The 0.75 HP dual-voltage motor is thermally protected (9.8 A at 115V / 4.9 A at 230V), with a 30 minutes on / 30 minutes off duty cycle, 18 feet of suction lift, and 60 feet of discharge head (26 PSI). It is backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR310VN
  • Max flow rate: 35 GPM / 132 LPM
  • Power: 115V/230V AC; 9.8 A at 115V / 4.9 A at 230V; 0.75 HP thermally protected motor
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1.25 inch female NPT inlet / 1 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 18' suction lift; 60' discharge head (26 PSI)
  • Compatible fluids: Diesel, kerosene, and biodiesel up to B20

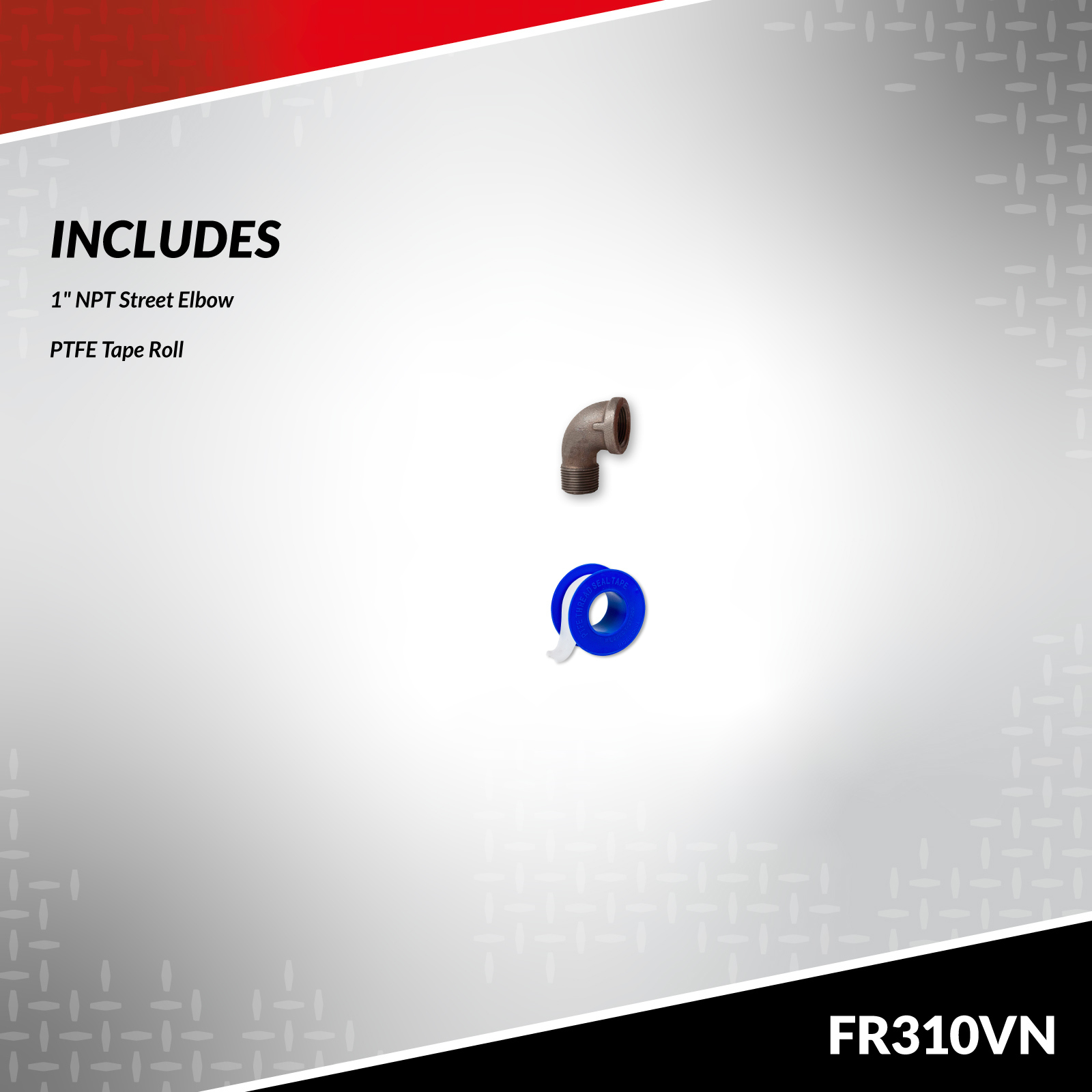

  • Included: Installation fittings (nozzle boot, 2" tank bung adapter, PTFE tape, 1" NPT street elbow, locking nuts, fasteners, check valve cover); bare leads (no factory power cord, hose, nozzle, or meter)
  • Assembled weight: 65.8 lbs
  • Warranty: Limited Lifetime
Common Uses

Builders and shops that want the 35 GPM FR300 pump on a 115V or 230V diesel or kerosene tank and will supply their own hose, nozzle, and meter.



Detailed Information

PDF  FR310VN Spec Sheet

PDF  FR310VN Manual
