Fill-Rite FR310VB 115/230V High Flow AC Pump with Hose and Automatic Nozzle - 35 GPM

Model/SKU: FR310VB
Manufacturer Part # FR310VB

Description

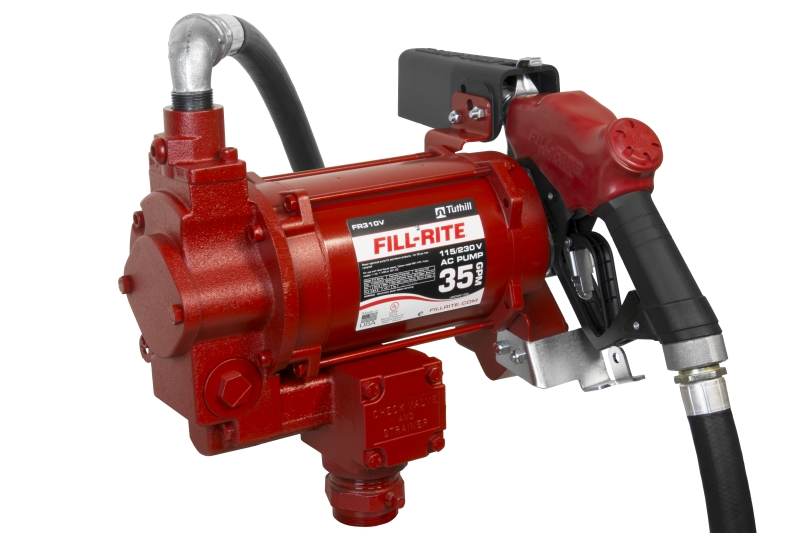

The Fill-Rite FR310VB is a 115/230V AC, 35 GPM (132 LPM) high-flow cast iron fuel transfer pump packaged with a 1 inch by 18 foot UL listed hose with static ground wire and a 1 inch ultra hi-flow automatic diesel nozzle (green). It is built for high-volume diesel transfer from stationary storage tanks.

The dual-voltage 0.75 HP motor runs on 115V or 230V AC (9.8 A / 4.9 A) with thermal overload protection and a 30 minutes on / 30 minutes off duty cycle. The cast iron pump delivers 18 feet of suction lift and 60 feet of discharge head (26 PSI), and includes a check valve cover, 2 inch tank bung adapter, and mounting hardware. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR310VB
  • Max flow rate: 35 GPM / 132 LPM
  • Power: 115V / 230V AC, 50/60 Hz; 9.8 A at 115V / 4.9 A at 230V; 0.75 HP thermally protected motor
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1.25 inch female NPT inlet / 1 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount (2 inch tank bung adapter included)
  • Suction lift / discharge: 18' suction lift; 60' discharge head (26 PSI)
  • Operating temperature: -13 to 150 degrees F
  • Compatible fluids: Diesel, kerosene, and biodiesel up to B20
  • Housing: Cast iron

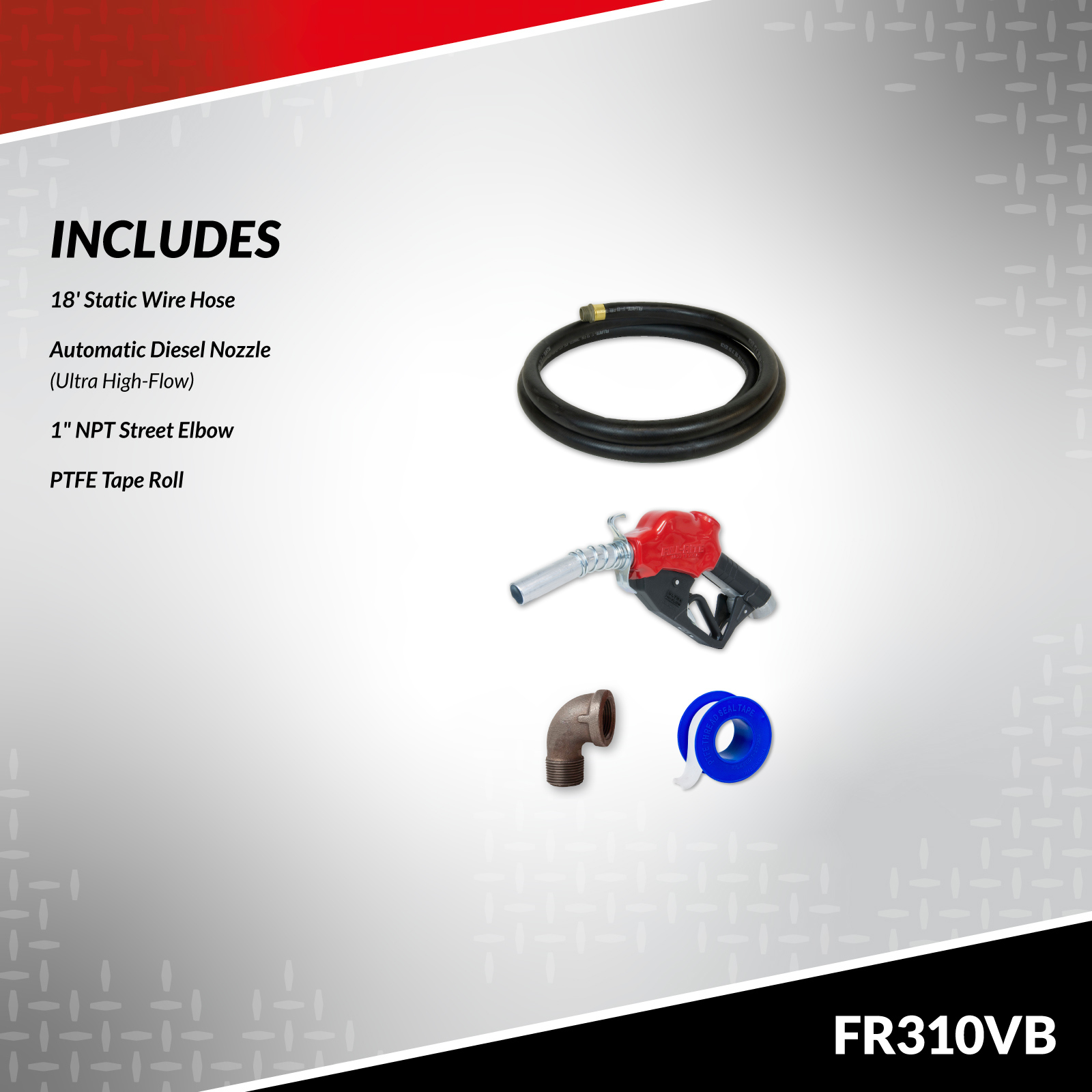

  • Included: 1" x 18' UL listed hose with static ground wire, 1" ultra hi-flow automatic diesel nozzle (green), nozzle boot, 2" tank bung adapter, PTFE tape, 1" NPT street elbow, (4) locking nuts, (4) fasteners, and check valve cover
  • Assembled weight: 81.8 lbs
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

Fast refueling of large diesel equipment such as combines, dozers, and fleet trucks from on-site bulk tanks where 35 GPM saves time at every fill.



Detailed Information

PDF  FR310VB Spec Sheet

PDF  FR310VB Manual
