Fill-Rite FR701V 115 Volt AC Pump with 807C Gallon Meter with Manual Nozzle - 15 GPM 1
Lead Time:  3-5 Days
Ships From: Indiana


Ask a question about this product

Quantity


Model: FR701V
Manufacturer: Fill-Rite

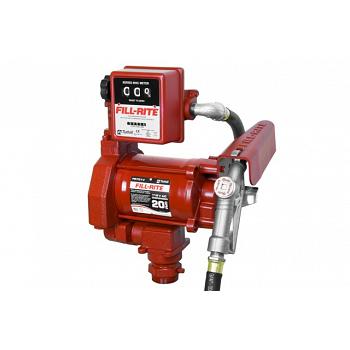

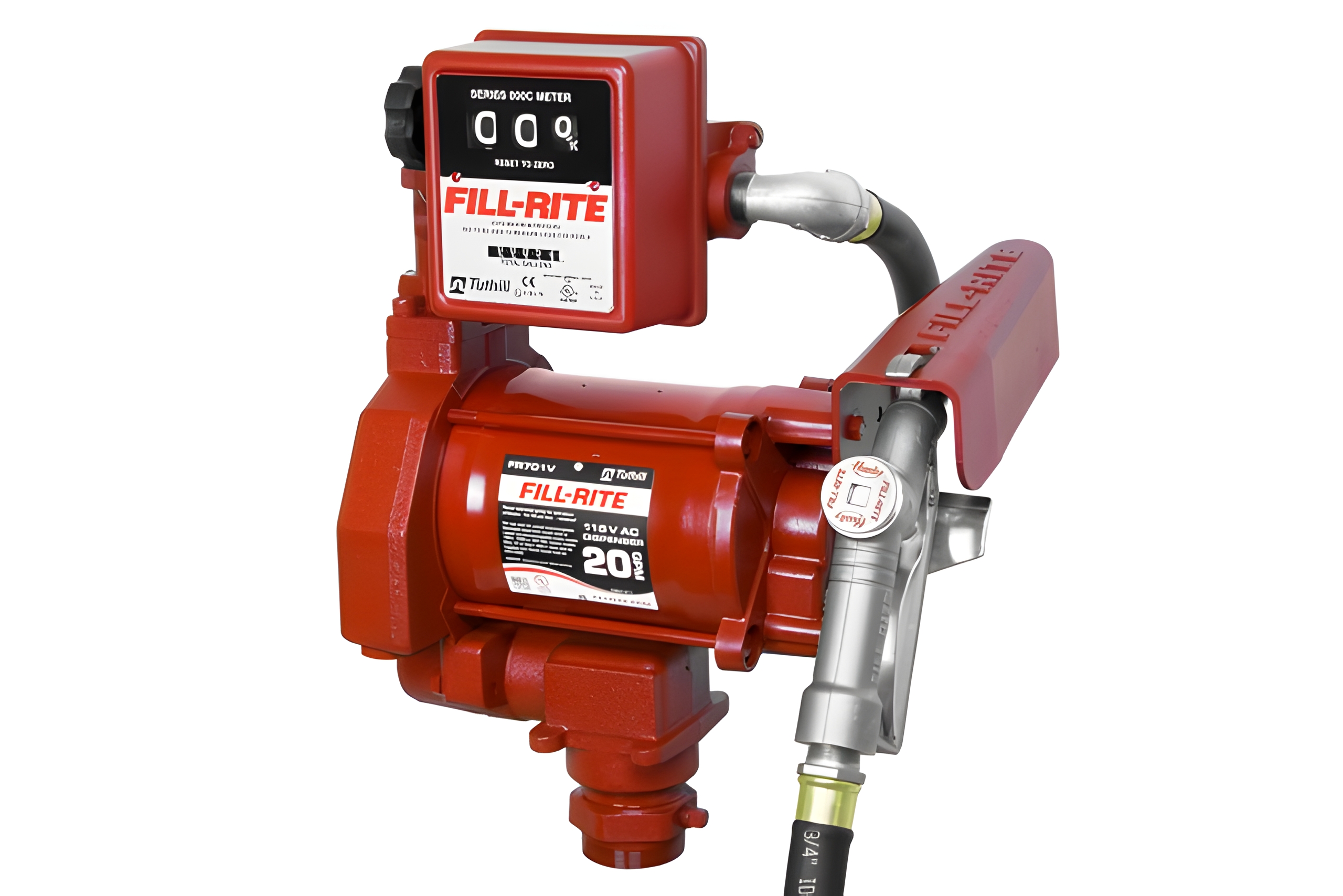

This rugged, positive displacement, Heavy Duty pump is UL listed. Explosion proof UL listed 1/3 HP motor (115 VAC-60Hz) with sealed bearings, Heavy Duty switch, thermal overload protection and junction box. Carbon vanes and ceramic/carbon seals reduce wear and repair expense. Integral check valve with pressure relief on outlet side reduces pressure drop and improves vertical lift. Easy removable strainer, automatic bypass valve, 2 threaded bung for tank openings.

Features & Benefits

  • 15 GPM (57 LPM)
  • 1/3 HP motor
  • UL/cUL listed pump and motor
  • Heavy duty cast iron construction
  • Diesel/Gasoline/Kerosene/E15/BD up to BD20
  • 2 year warranty
  • 2 threaded base for tank mounting
  • Iron rotor with carbon rotary vanes
  • Self priming
  • Check valve, pressure relief valve, and strainer included

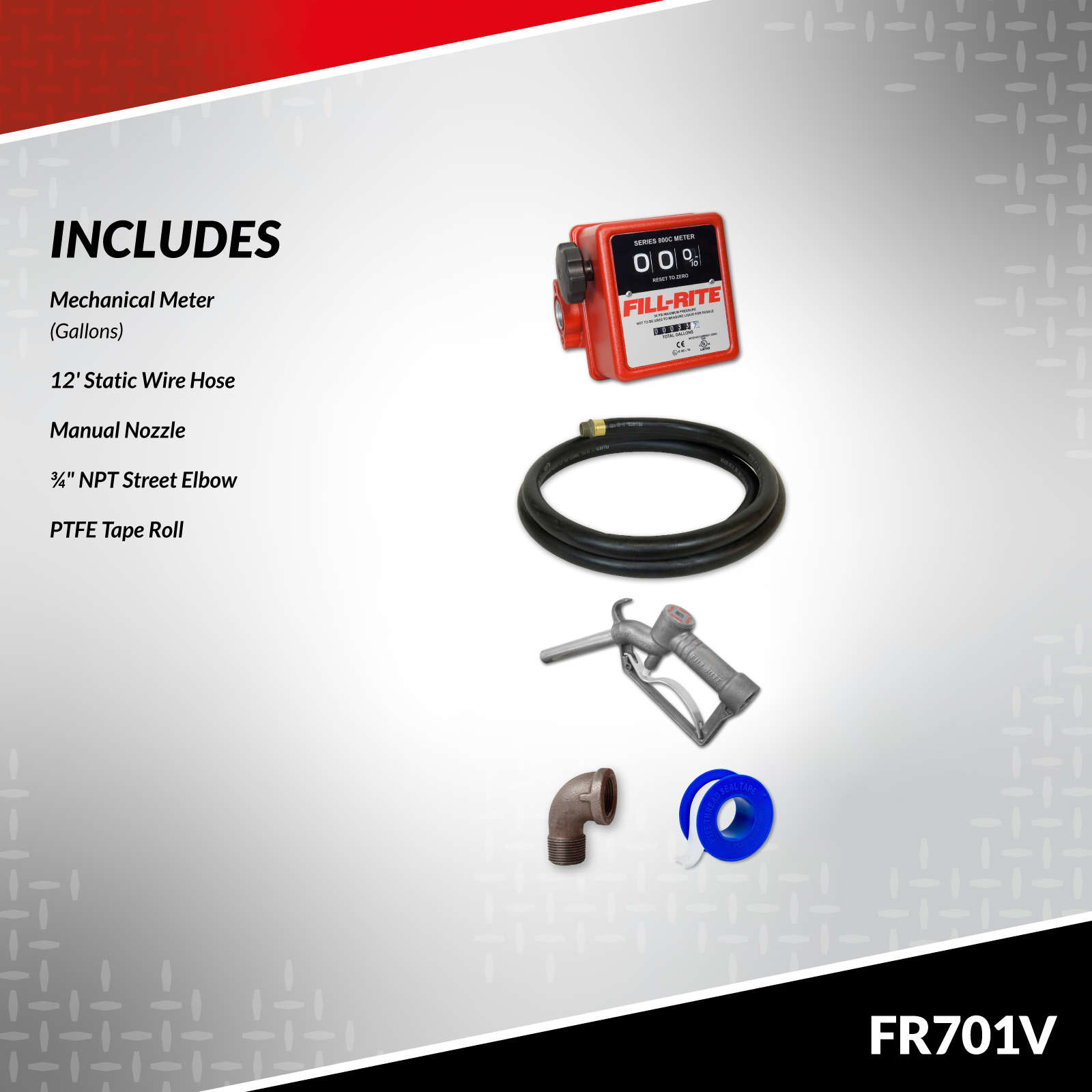

  • 3/4 x 12' foot hose with static wire
  • 807C gallon mechanical meter
  • Manual nozzle


Detailed Information

PDF  FR701V Spec Sheet

PDF  FR701V Manual

Fill-Rite
Fill-Rite Warranty Details:

PDF  Fill-Rite Warranty
