Fill-Rite FR610H 115V Fuel Transfer Pump (Manual Nozzle, Hose, Suction Pipe) - 15 GPM

Model/SKU: FR610H
Manufacturer Part # FR610H

Description

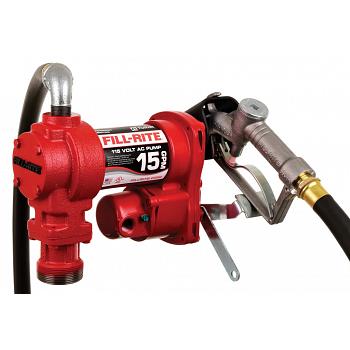

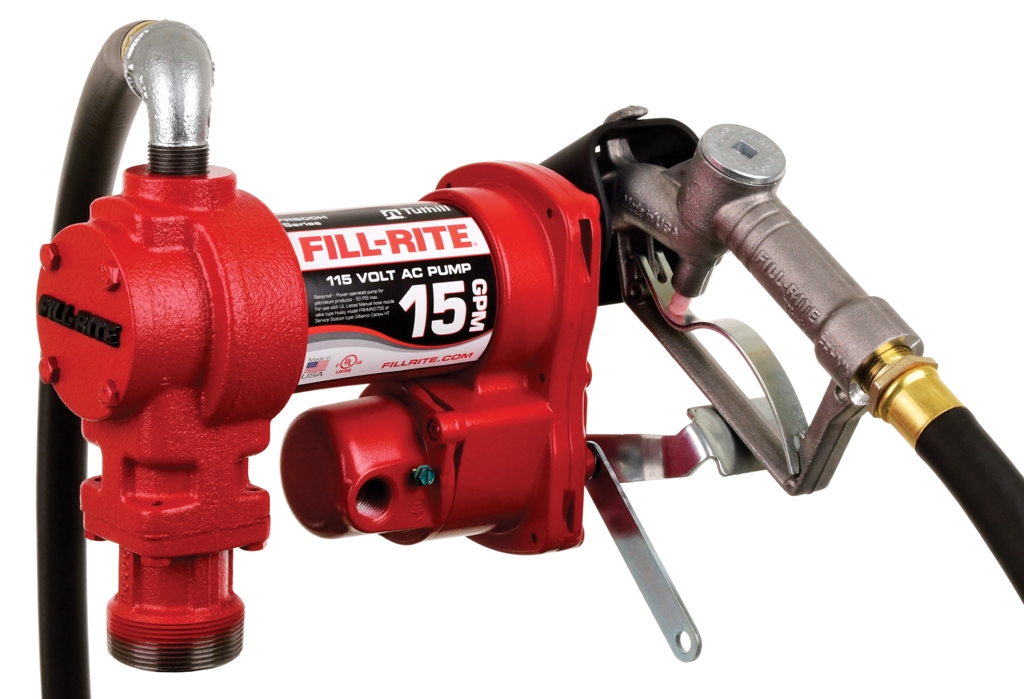

The Fill-Rite FR610H is a 115V AC, 15 GPM (57 LPM) heavy-duty cast iron fuel transfer pump packaged with a 3/4 inch by 12 foot UL listed discharge hose with static ground wire, a 3/4 inch cast aluminum manual nozzle, and a 20 to 34-1/2 inch steel telescoping suction pipe.

The thermally protected 0.17 HP motor draws 2 A on a standard 115V circuit and runs on a 30 minutes on / 30 minutes off duty cycle, with 8 feet of suction lift and 37 feet of discharge head (16 PSI). The adjustable junction box rotates 180 degrees for easier wiring in tight spaces, and a built-in mesh strainer helps keep debris out of the pump. It is cULus certified and backed by a Limited Lifetime warranty.

Key Specs
  • Model: FR610H
  • Max flow rate: 15 GPM / 57 LPM
  • Power: 115V AC, 2 A; 0.17 HP thermally protected motor
  • Duty cycle: 30 min on / 30 min off
  • Inlet / outlet: 1 inch female NPT inlet / 0.75 inch female NPT outlet
  • Mounting: 2 inch NPT bung mount
  • Suction lift / discharge: 8' suction lift; 37' discharge head (16 PSI)
  • Operating temperature: -17 to 104 degrees F
  • Compatible fluids: Diesel, gasoline, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
  • Housing: Cast iron

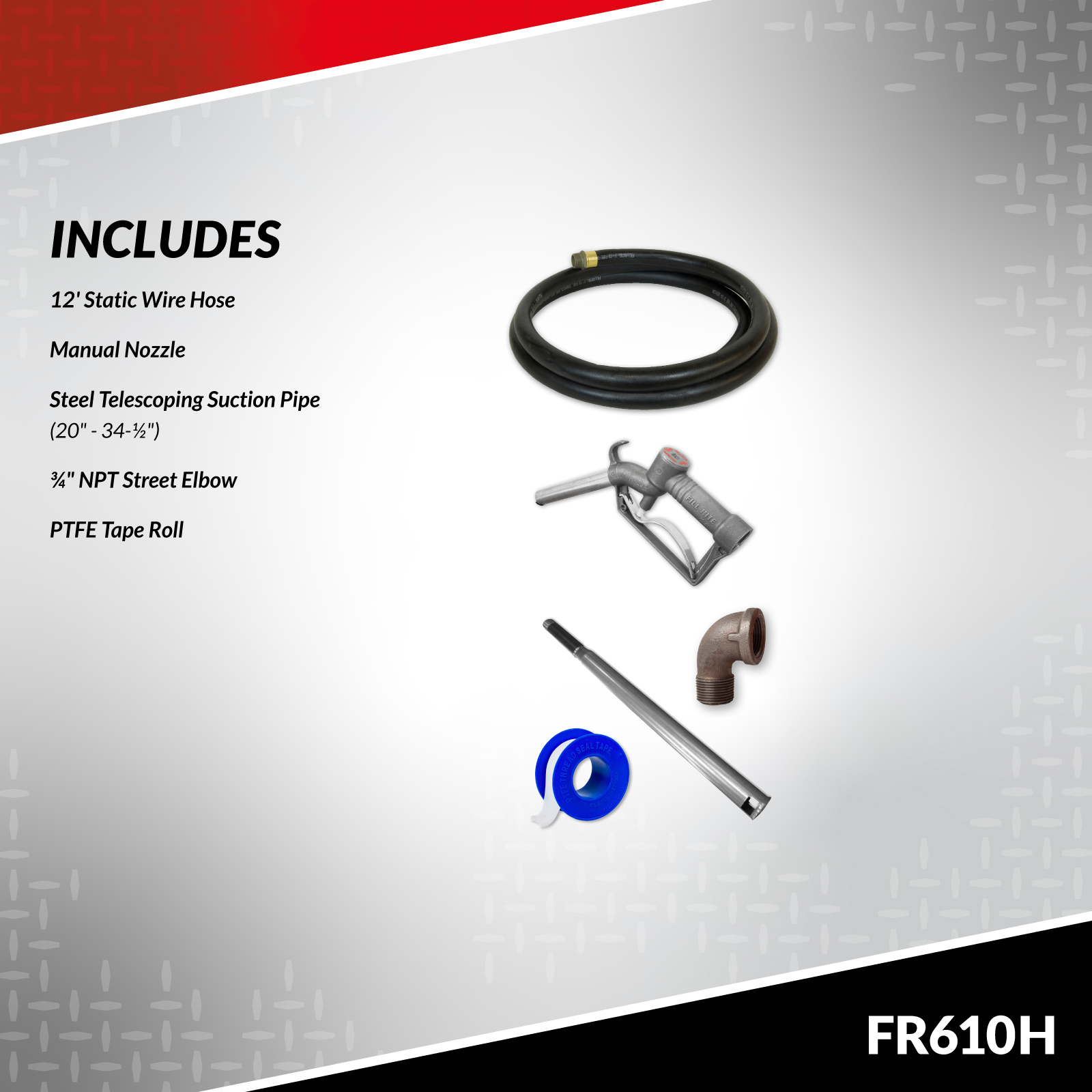

  • Included: 3/4" x 12' UL listed hose with static ground wire, 3/4" cast aluminum manual nozzle, 20"-34-1/2" steel telescoping suction pipe, nozzle boot, PTFE tape, 3/4" NPT street elbow, locking nut, and fastener
  • Assembled weight: 26.9 lbs
  • Certifications: cULus
  • Warranty: Limited Lifetime
Common Uses

Stationary 115V fuel tanks in shops, farms, and equipment yards where a complete 15 GPM pump, hose, and manual nozzle package is needed for refueling tractors, mowers, and small equipment.



Detailed Information

PDF  Sales Sheet

PDF  Technical Data Sheet

PDF  Product Manual
