Model: FR205BX054
Manufacturer: Sotera

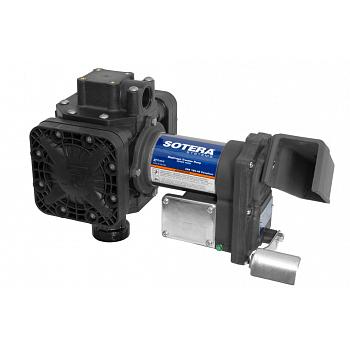

The Sotera FR205BX054 is a 24V DC 13GPM UL listed explosion-proof fluid lubricant transfer pump. The pump utilizes a glass-reinforced polypropylene housing that is designed with Hytrel diaphragms, nitrile elastomers, and a 1-5/16" - 12 SAE anodized flanged metal inlet with 1" NPT straight flange outlet. This model does not contain any additional accessories. The FR205BX054 is designed to transfer oil and lubricating fluids. Please always refer to the Sotera Chemical Resistance Guide for compatibility.

Features

  • Able to pump fluids with particles up to 0.100 in. Dia and viscosities up to 3700 CPS
  • 1" Inlet/1" outlet NPT Threads
  • Pump is able to run dry without damage (30-minute duty cycle - not for continuous operation)
  • Quiet operating pump with maximum sound level of 76 dBA
  • Thermal overload protection prevents motor from overheating during abnormal usage
  • Great for pumping thick fluids in cold weather environments
  • 8" Hg 'Dry Lift' [9 ft (2.7M) of water]
  • Maximum outlet pressure 15 PSI (1 Bar)


Detailed Information

PDF  Sotera Product Manual

PDF  Sotera Chemical Resistance Guide
Sotera
Sotera / Fill-Rite Warranty Details:

PDF  Fill-Rite / Sotera Warranty
